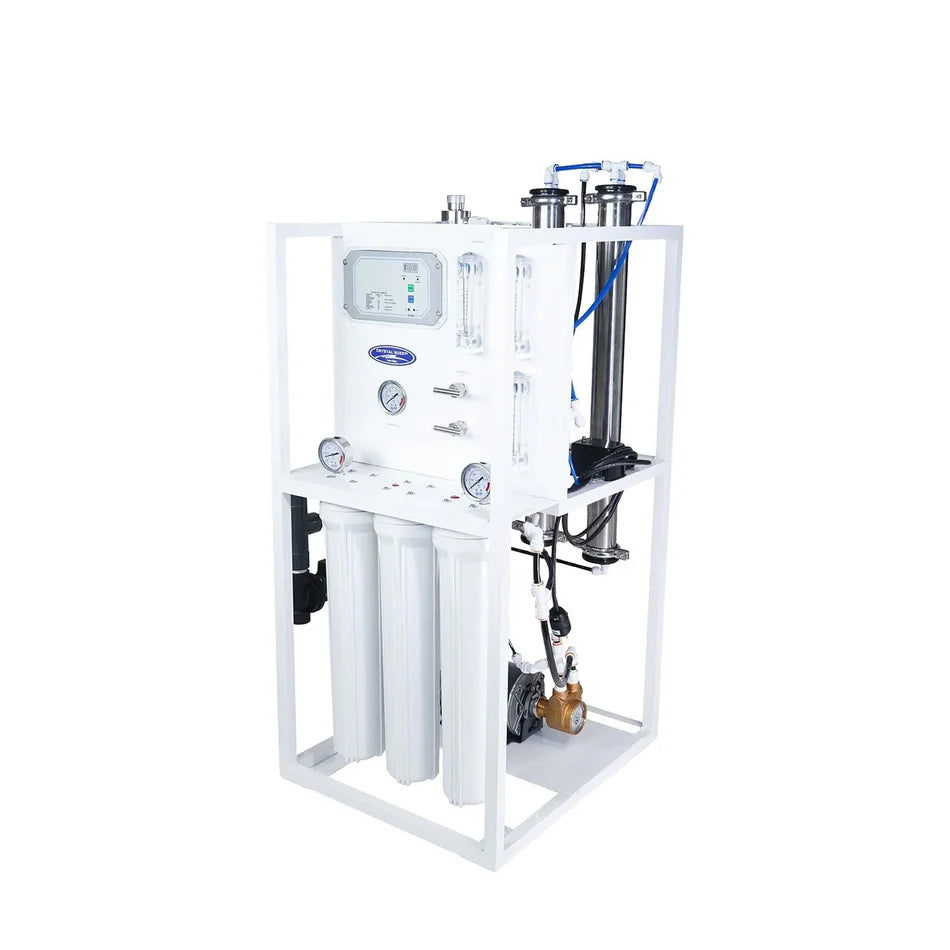

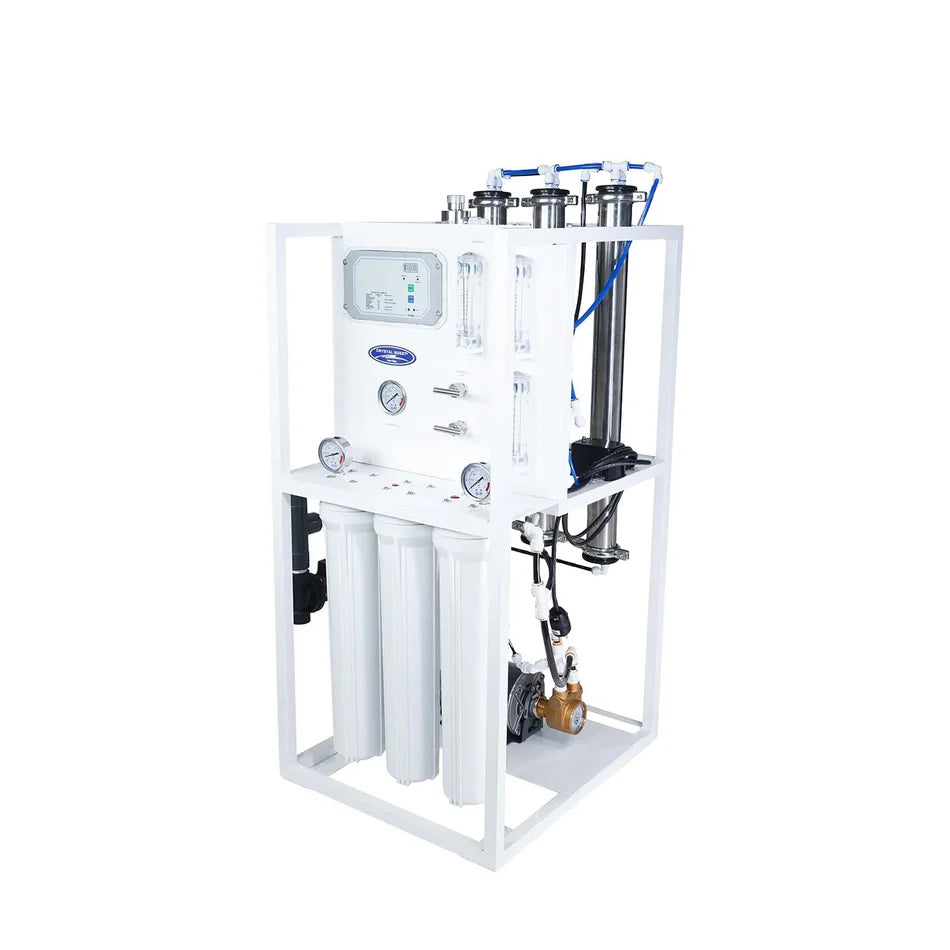

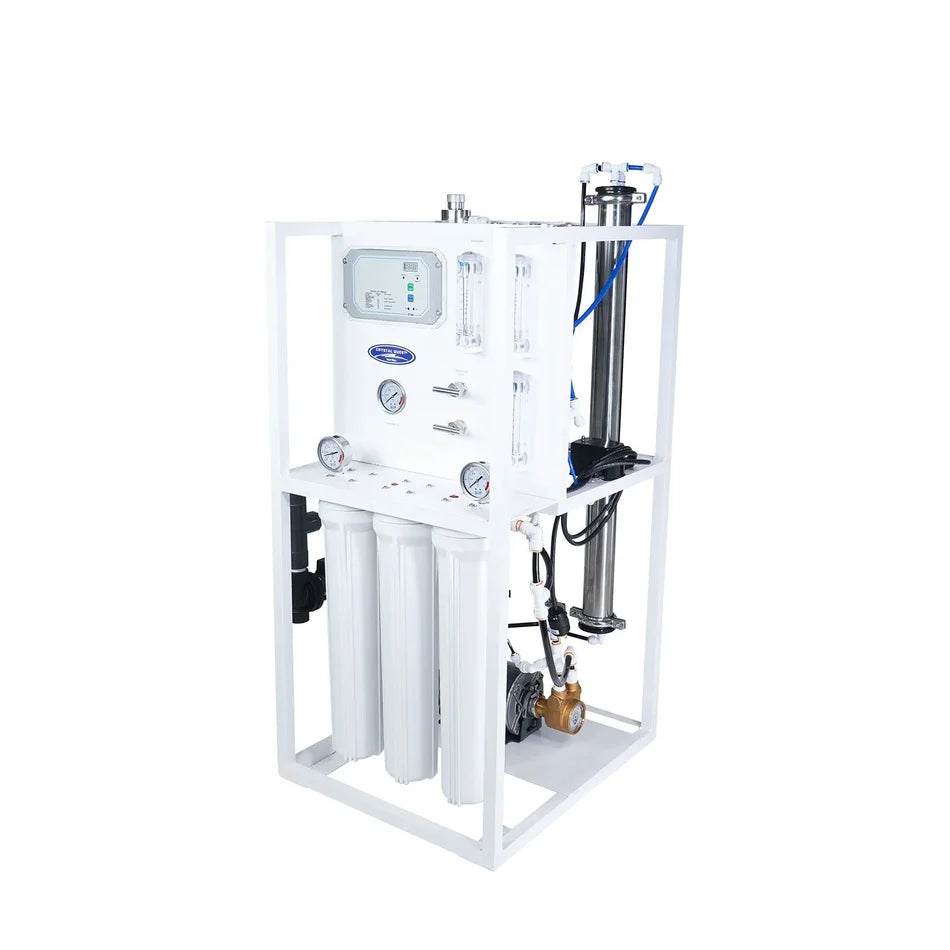

Crystal Quest 500–1000 GPD Reverse Osmosis Water System – Mid-Flow

Overview

The Crystal Quest Mid-Flow Reverse Osmosis System (500–1000 GPD) is engineered to deliver high-purity water for pharmaceutical, healthcare, and laboratory applications where reliability and consistent water quality are essential.

Designed for medium-capacity operations, this system offers flexible configuration options and dependable performance for controlled environments. Its modular design allows seamless integration into existing workflows while maintaining efficiency and ease of use.

Pump Configuration Options

This system is available with two pump configurations depending on your application requirements:

Brass Rotary Vane Pump → cost-effective and suitable for general applications

Stainless Steel Rotary Pump → enhanced durability and corrosion resistance for demanding or high-purity environments

Selecting the appropriate pump ensures optimal system performance and longevity.

System Configuration Options

These systems can be configured based on water demand, storage requirements, and available space. Multiple storage tank options are available:

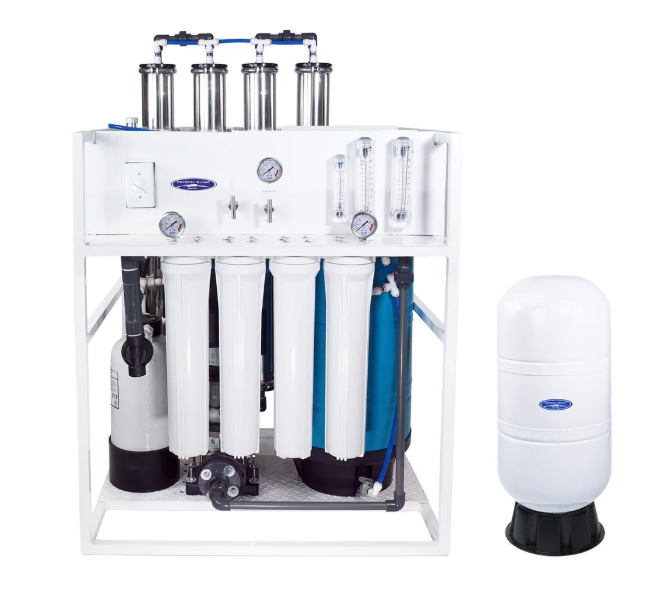

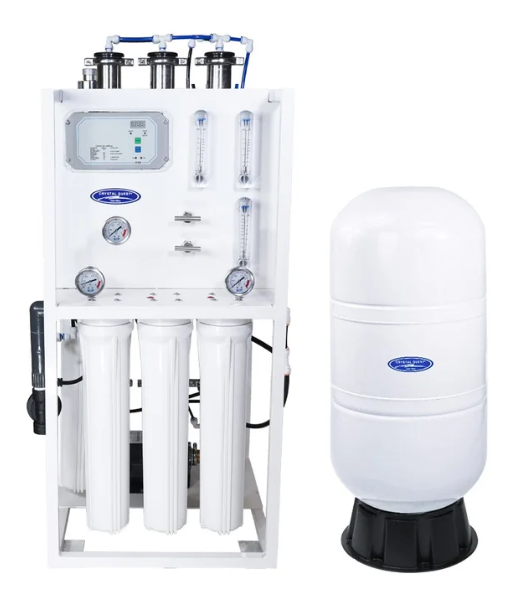

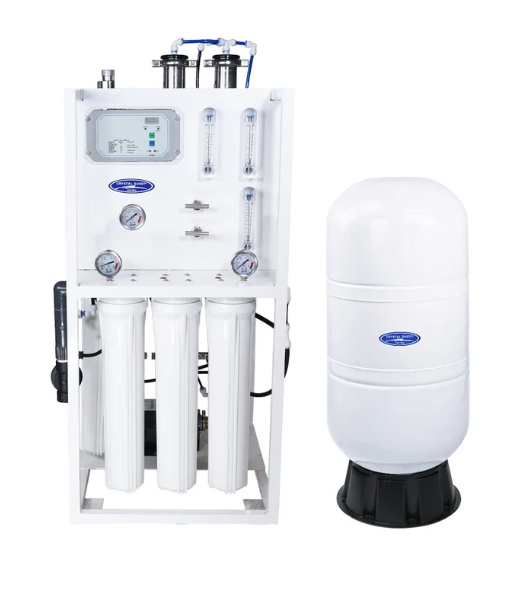

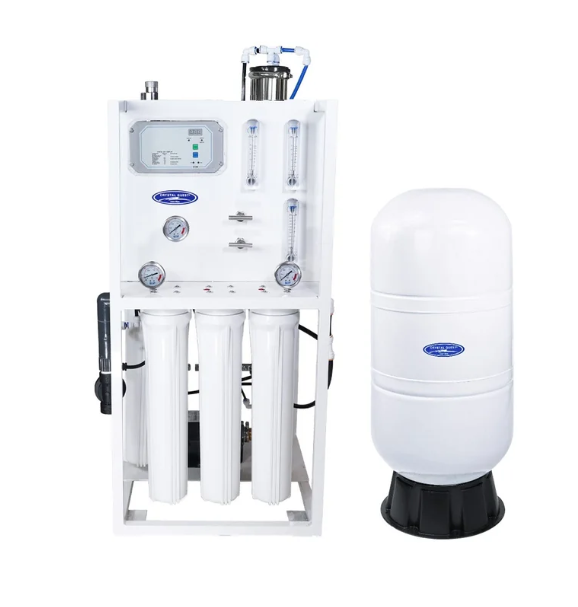

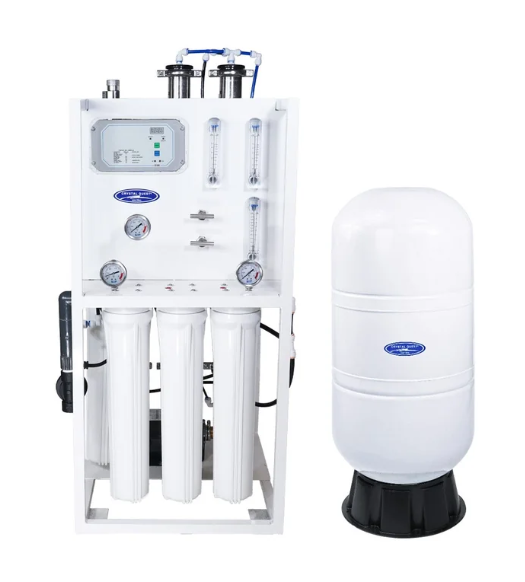

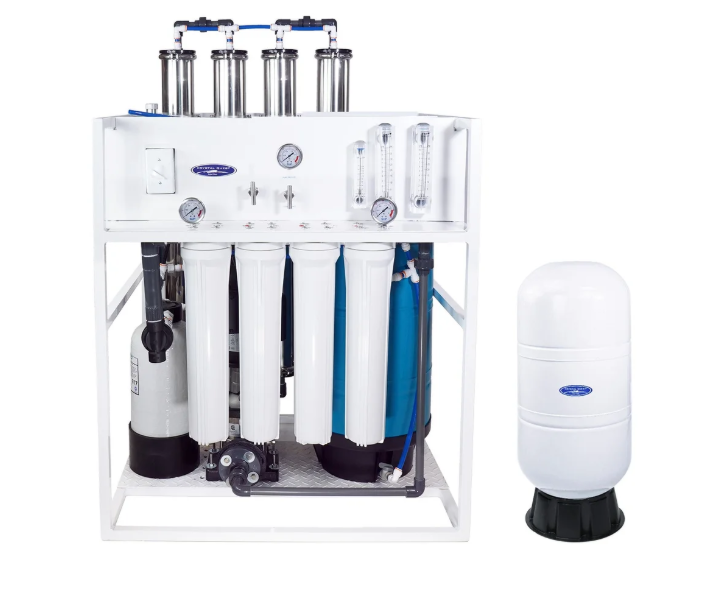

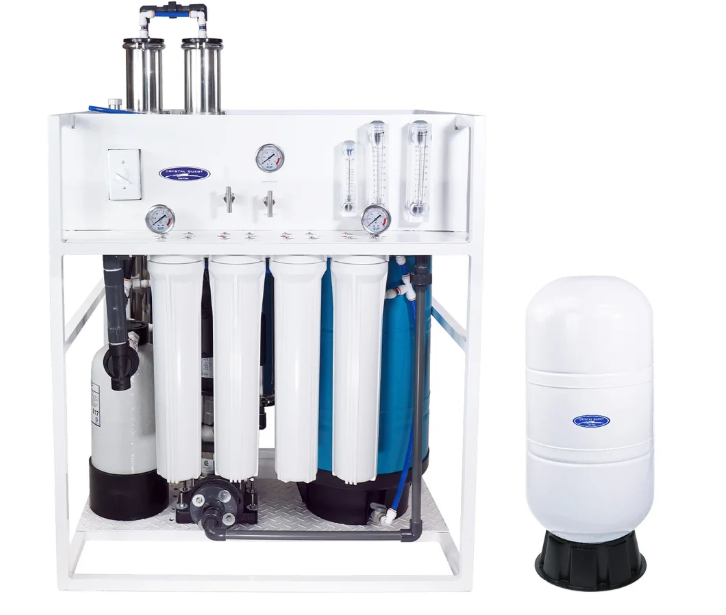

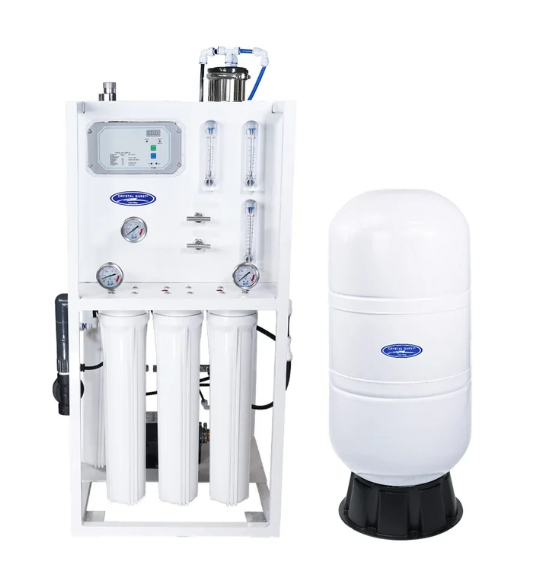

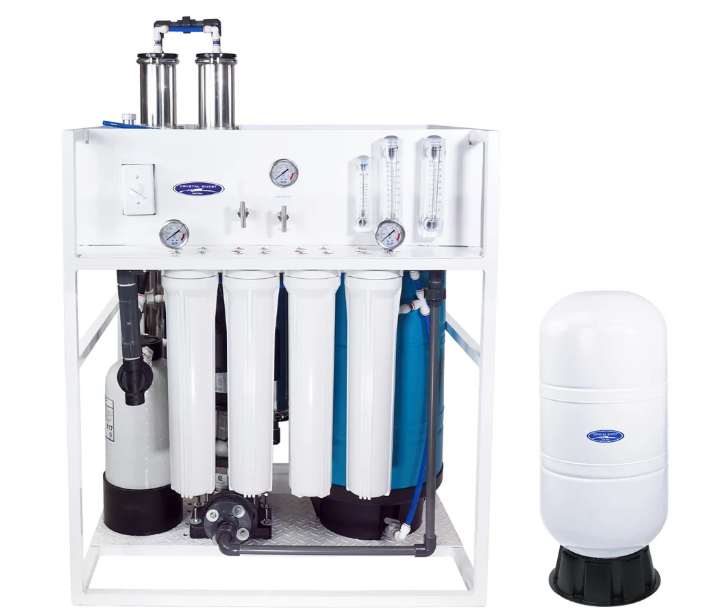

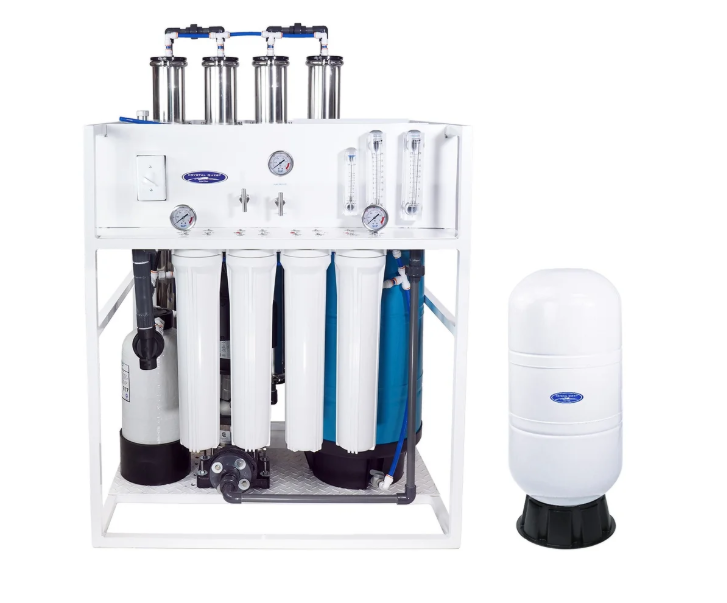

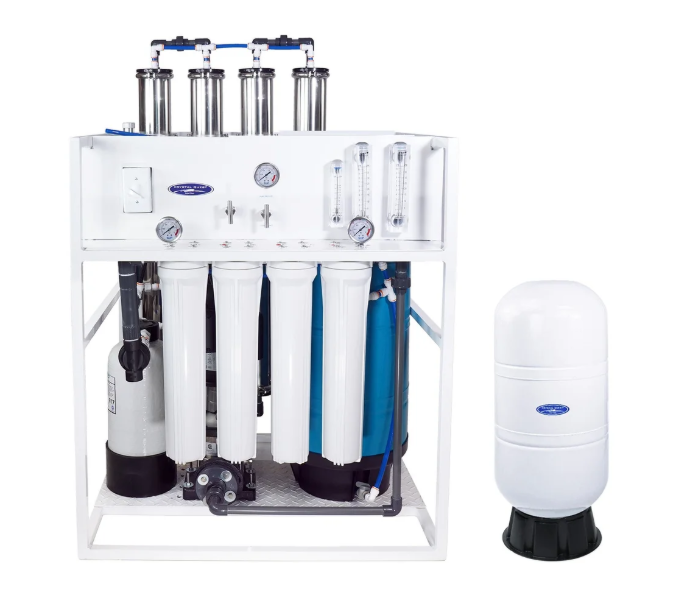

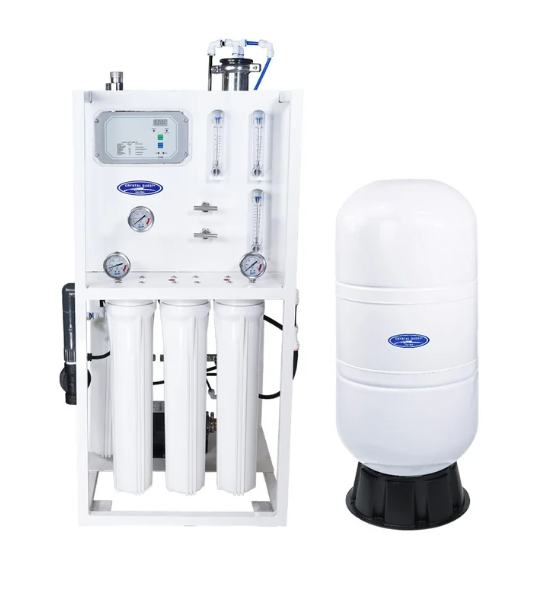

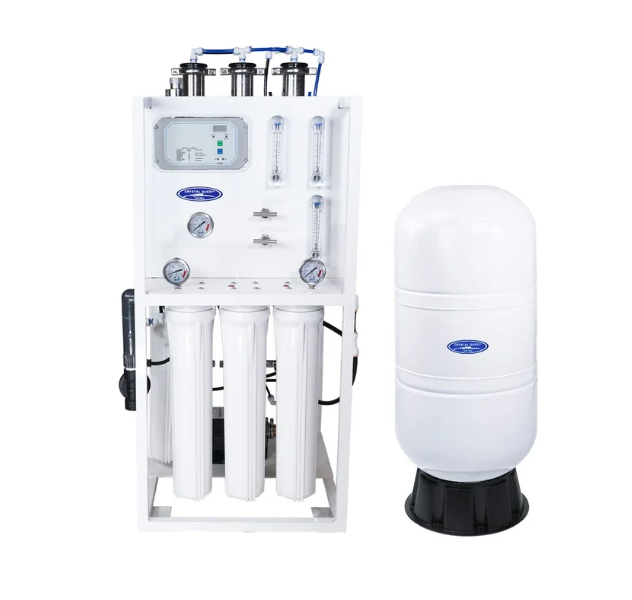

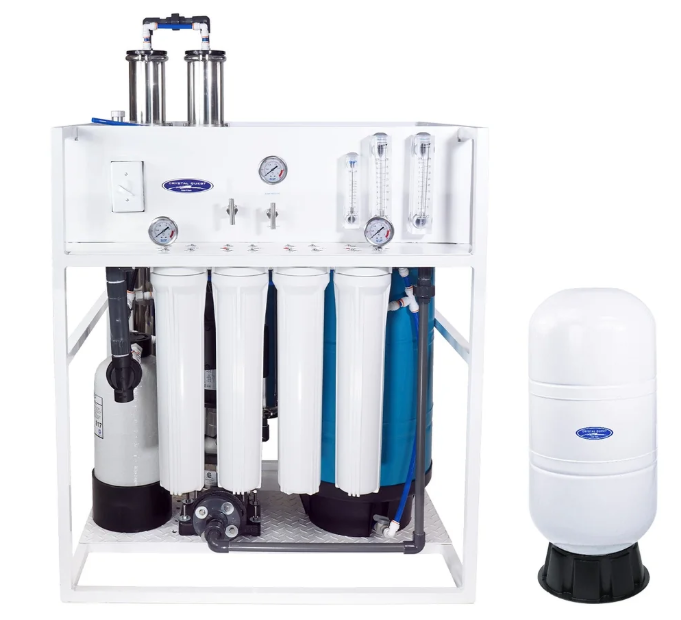

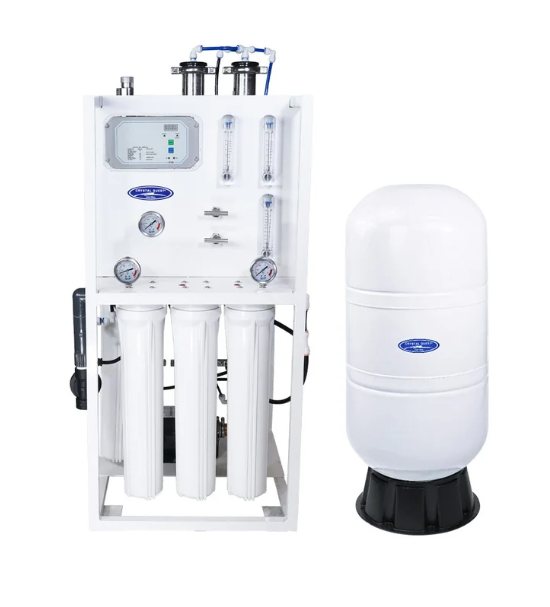

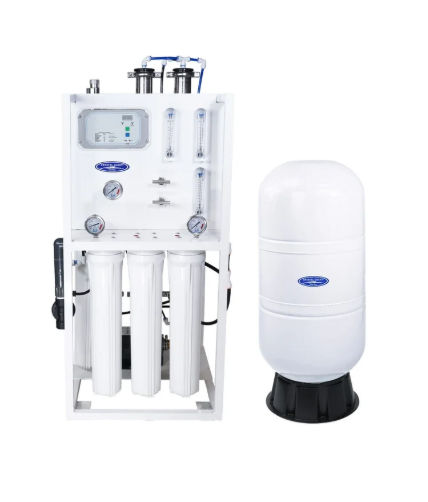

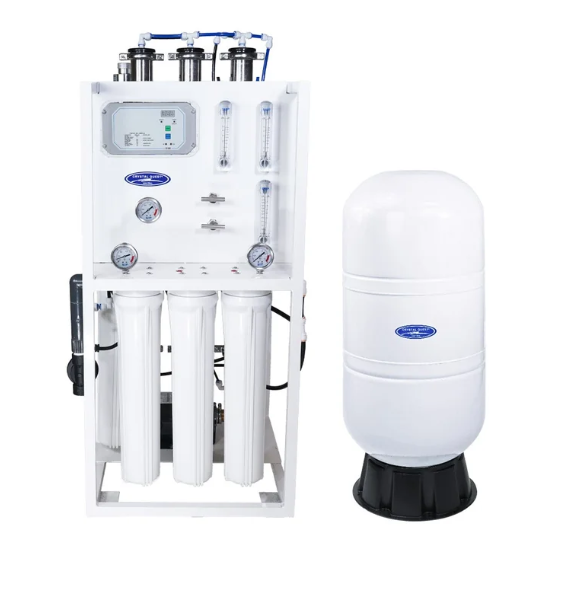

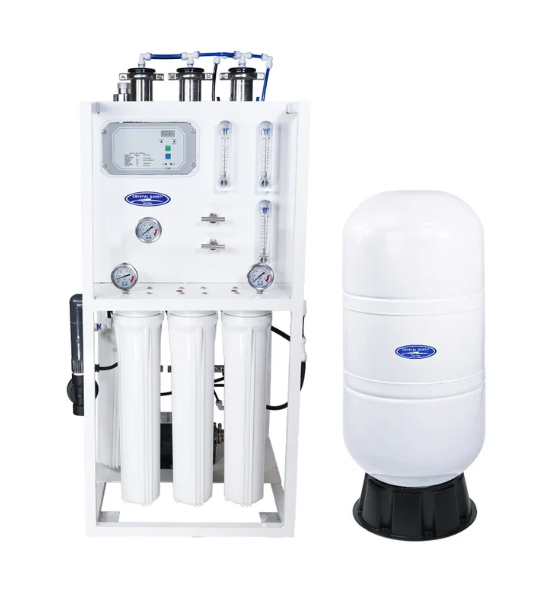

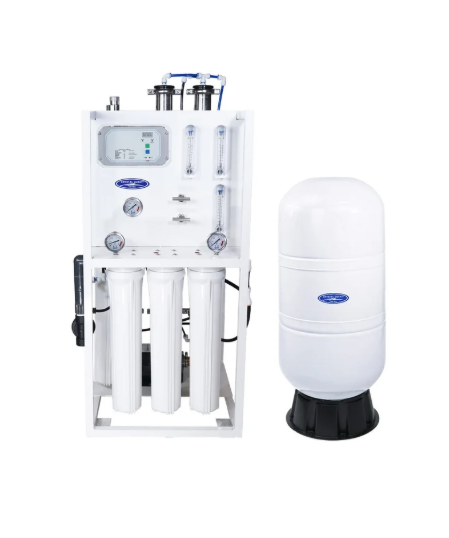

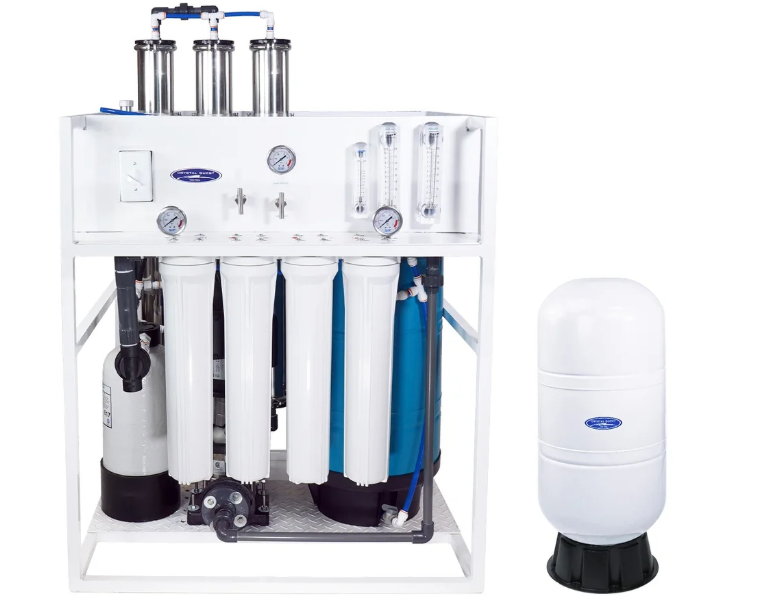

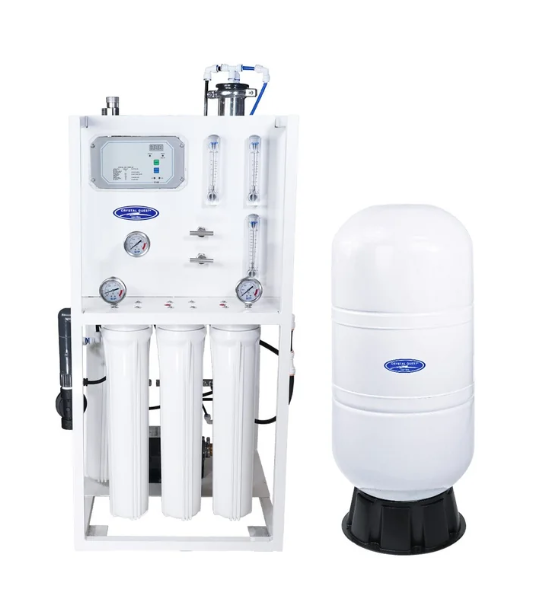

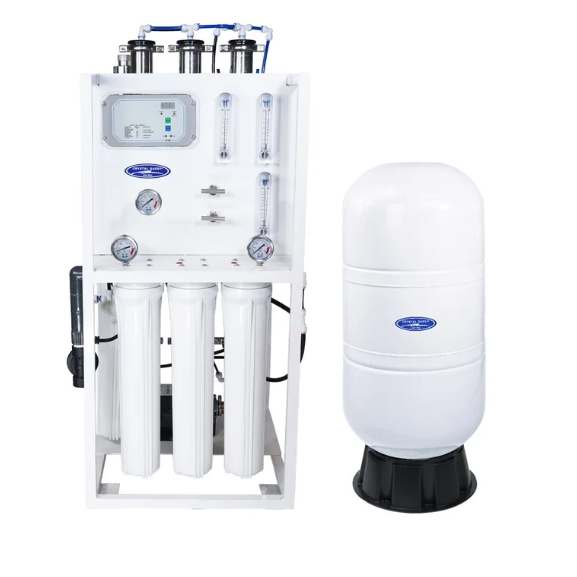

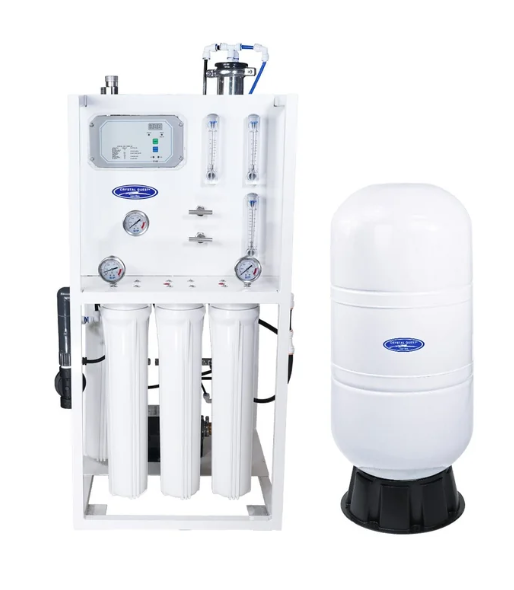

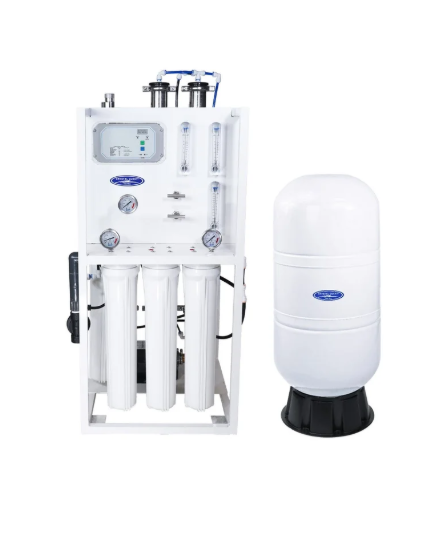

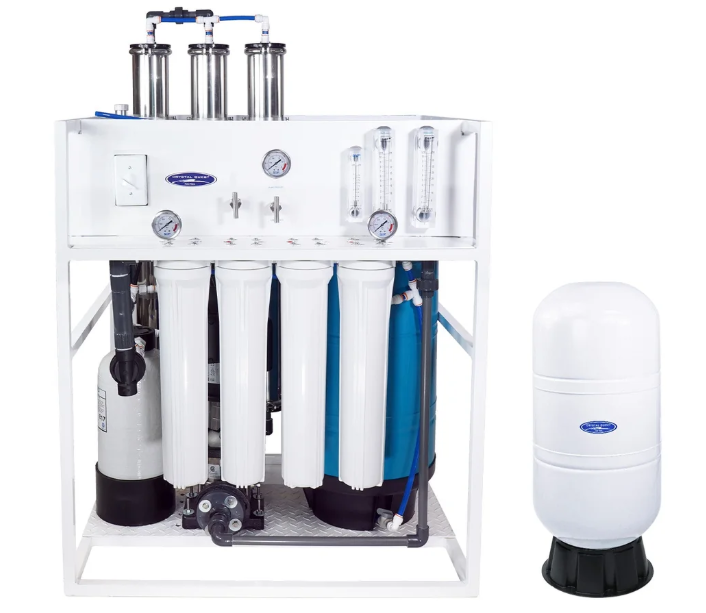

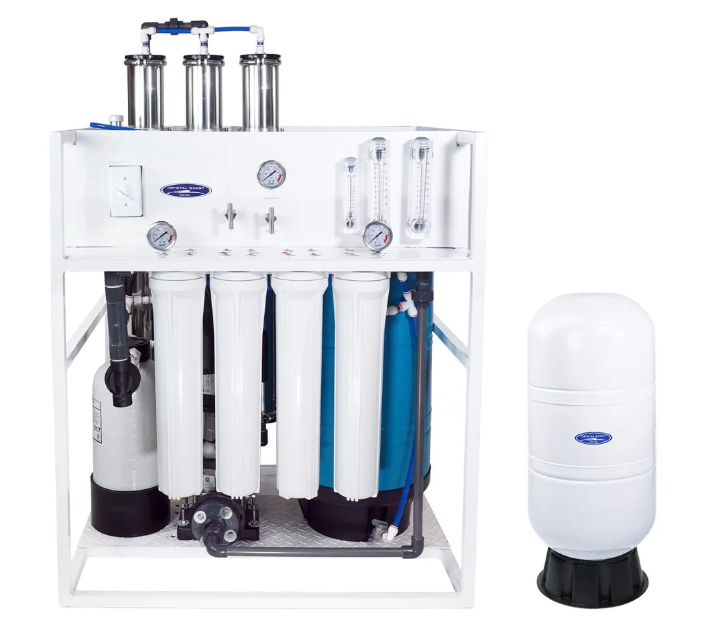

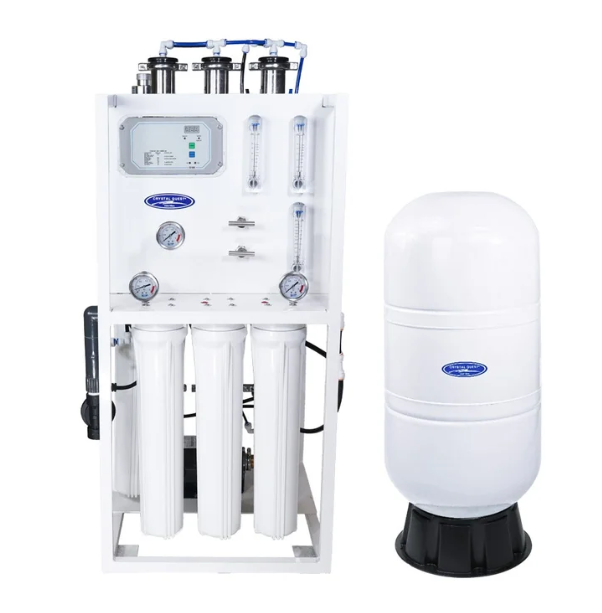

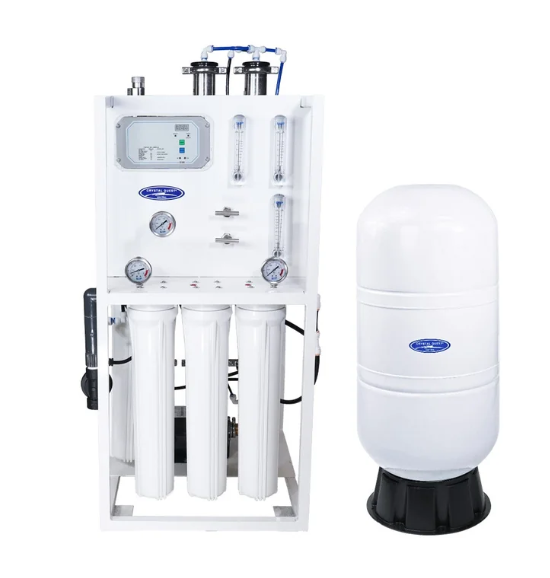

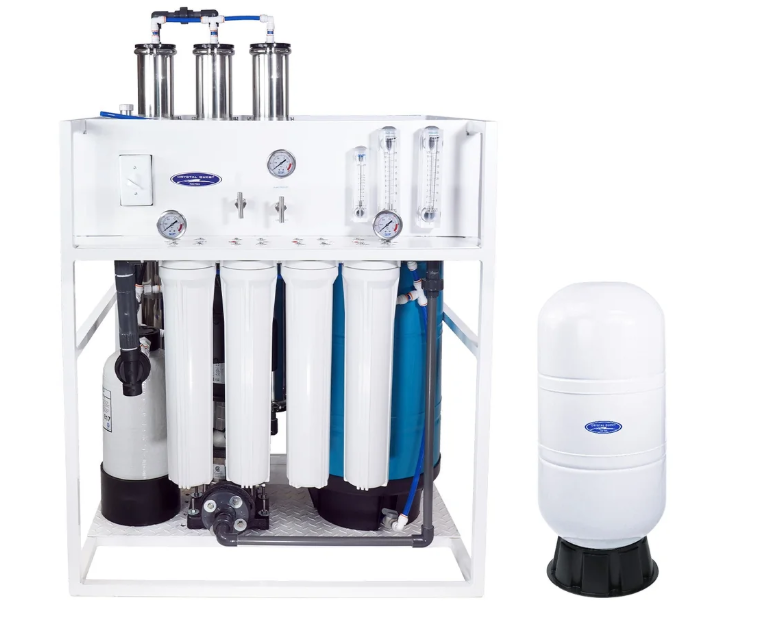

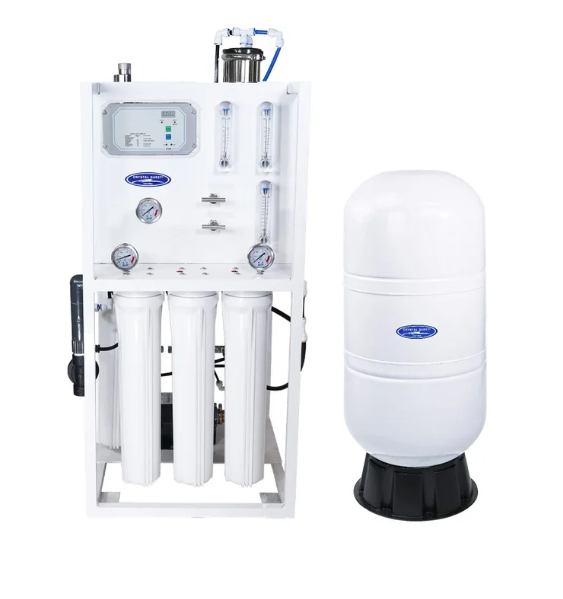

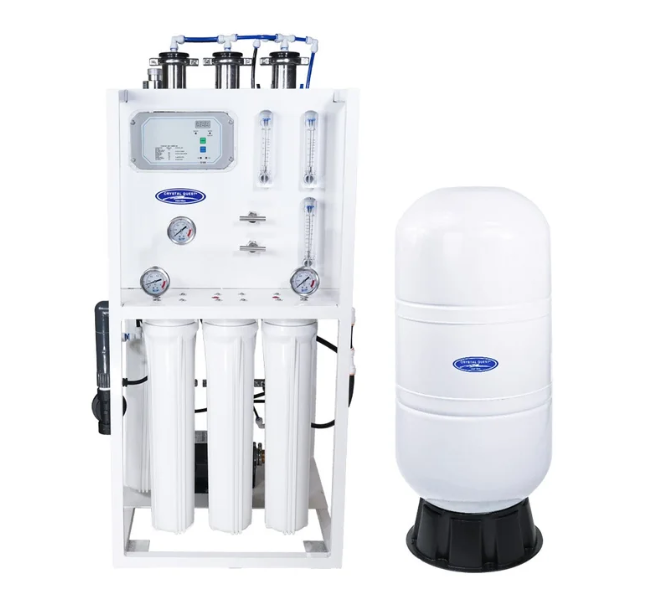

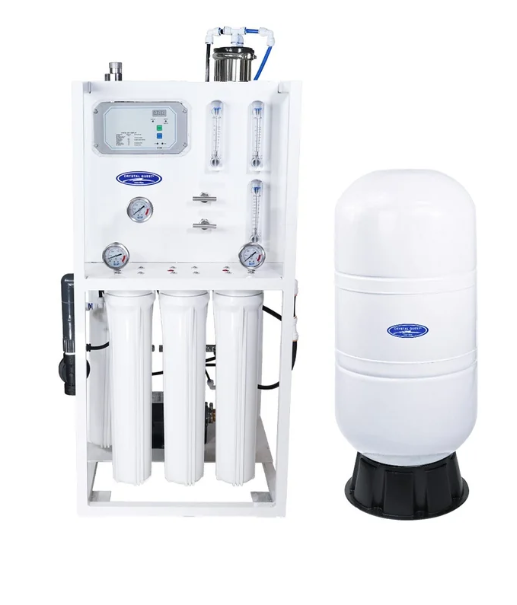

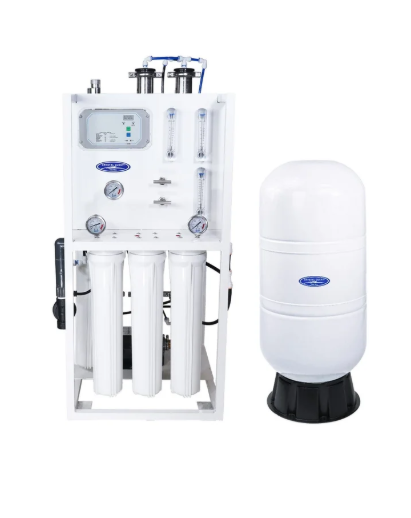

Bladder (Pressure) Tank Configuration (20–40 GAL)

A compact, pressurized storage solution ideal for moderate demand applications.

Best suited for
Systems up to ~1000 GPD
Intermittent usage
Space-restricted installations

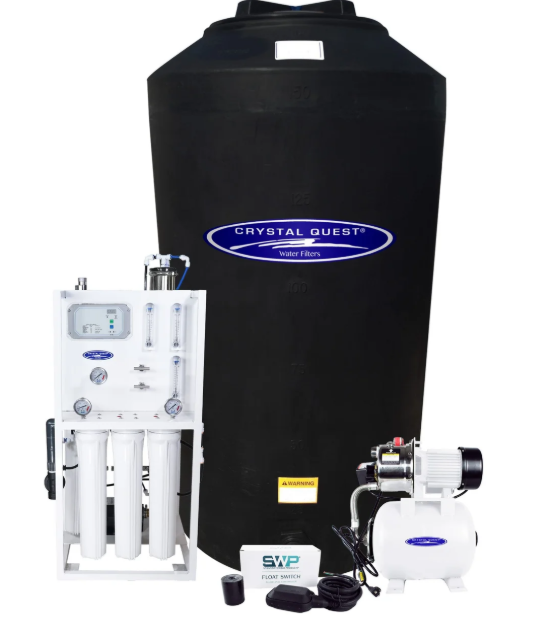

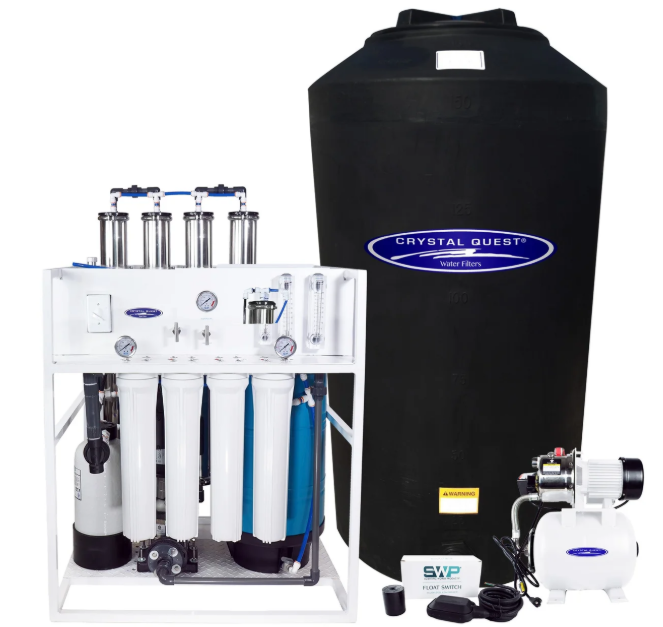

Atmospheric Storage Tank Options (with Pump)

Atmospheric tanks store water at ambient pressure and require a delivery pump (included in tank kits). Multiple tank sizes are available depending on system size and demand:

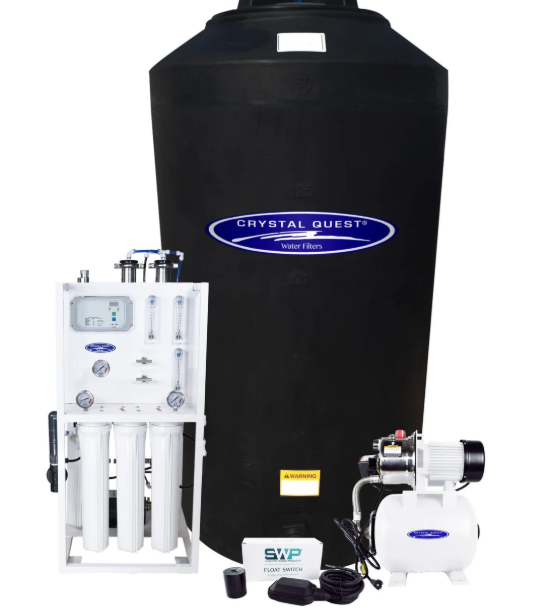

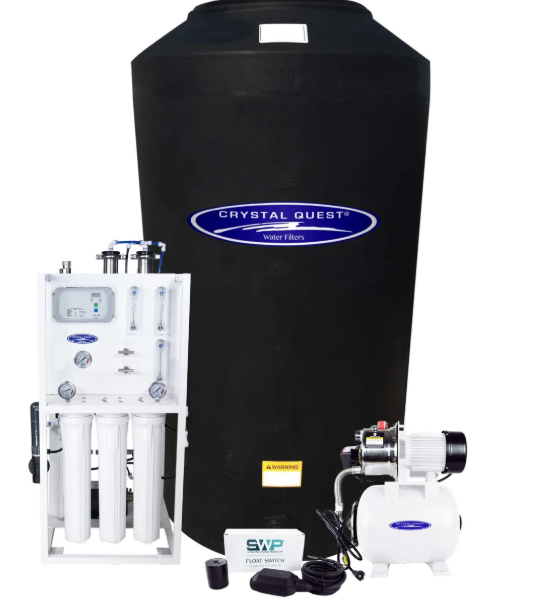

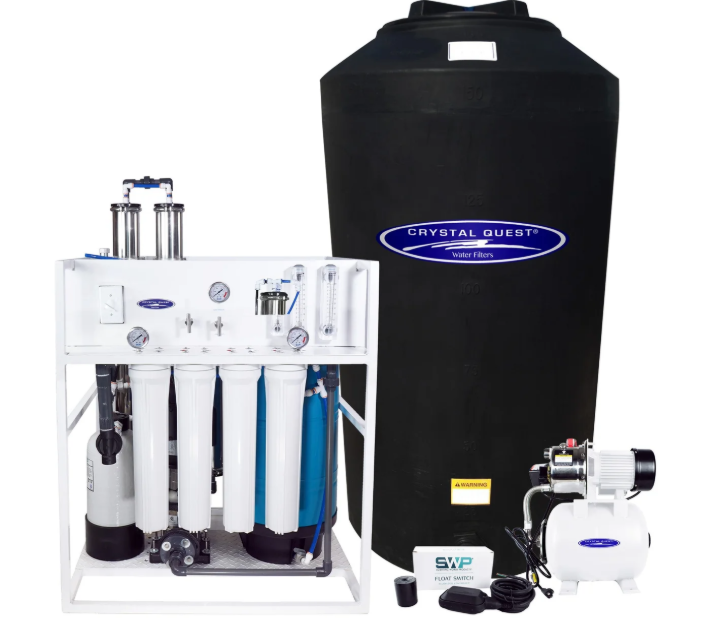

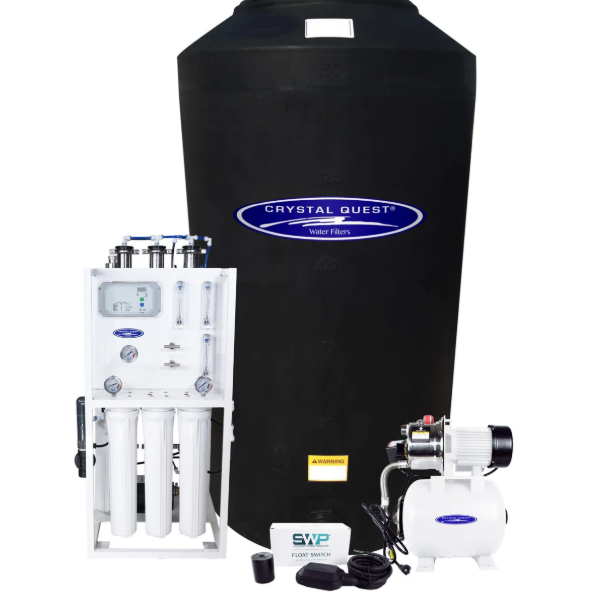

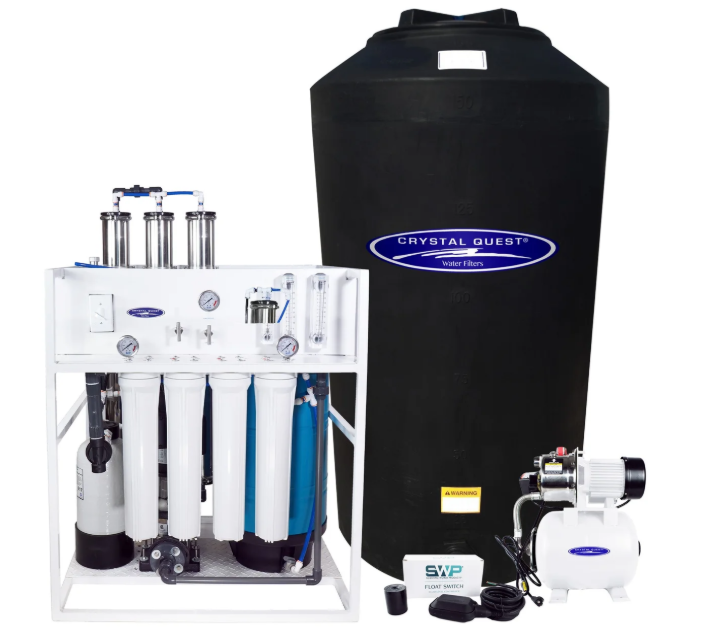

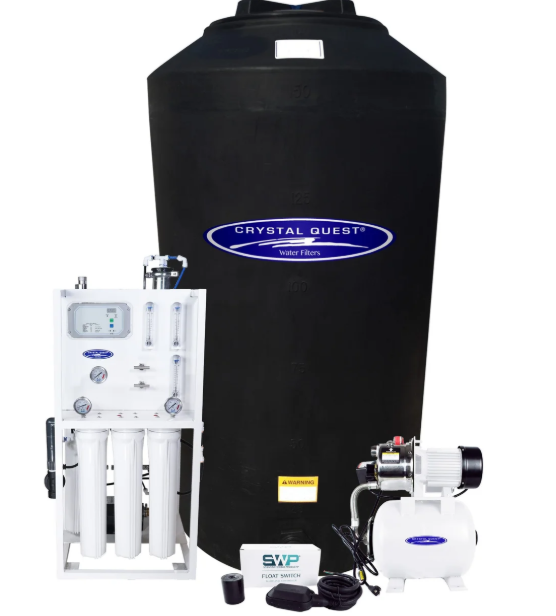

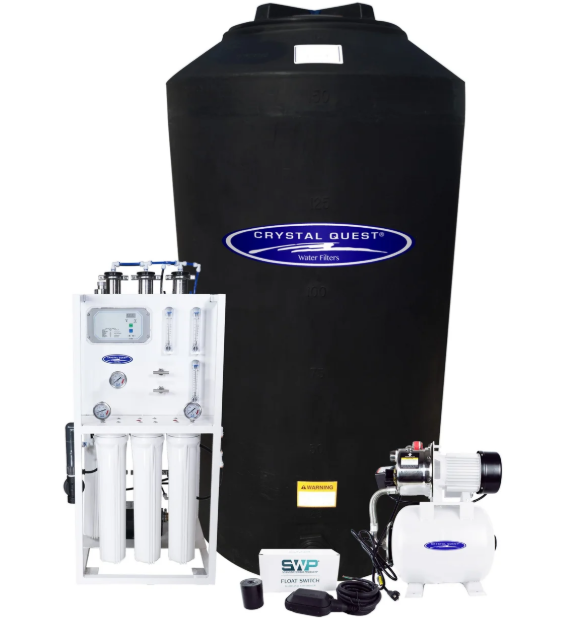

165 Gallon Tank
Compact option
Suitable for lower demand or space-limited setups
Can be used with higher GPD systems but offers limited storage capacity

220 Gallon Tank (Recommended for 500–2500 GPD systems)
Balanced storage capacity
Ideal for most commercial and mid-flow applications
Provides stable performance under moderate to high demand

500 Gallon Tank (Recommended for 4000–7000 GPD systems)
High-capacity storage solution
Designed for continuous or high-demand applications
Ensures consistent supply during peak usage

Key advantages of atmospheric systems
Large storage capacity
Consistent pressure with pump assistance
Suitable for high-demand and multi-user environments

Important
Atmospheric tanks include a dedicated delivery pump.
Bladder and atmospheric configurations are not used together.
Tank selection should be based on demand, not just system size.

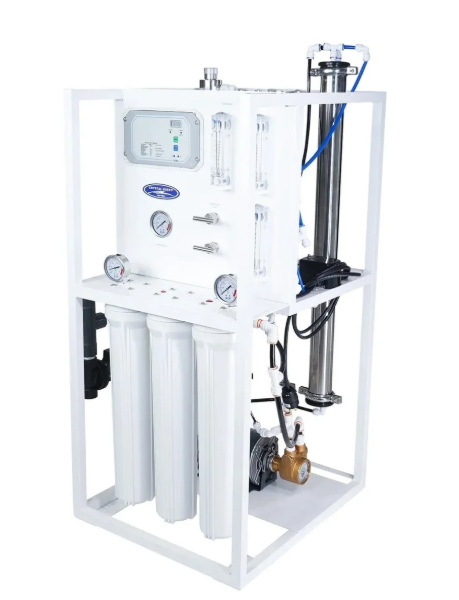

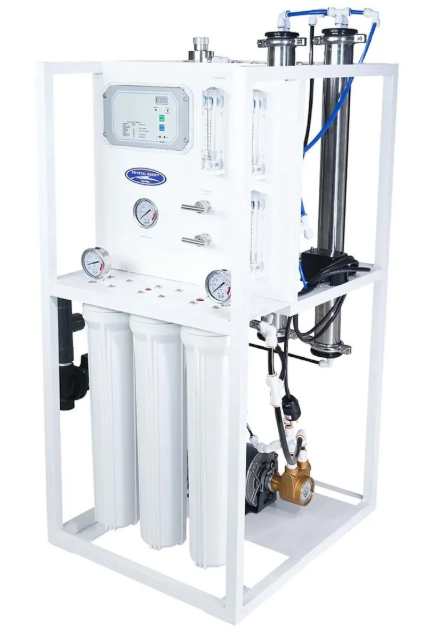

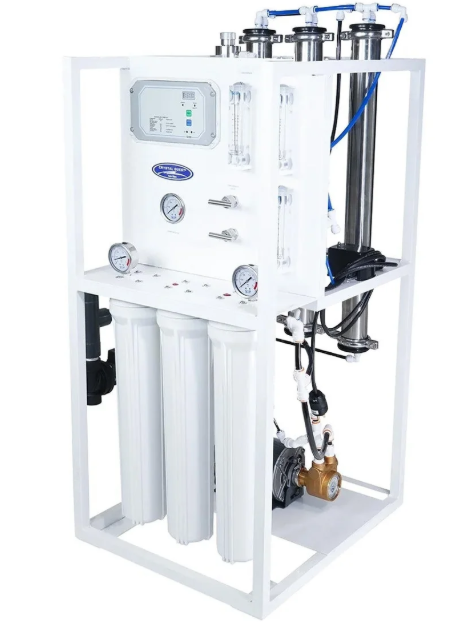

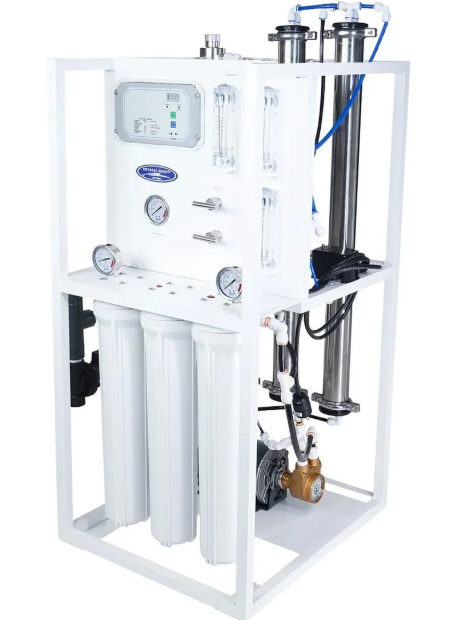

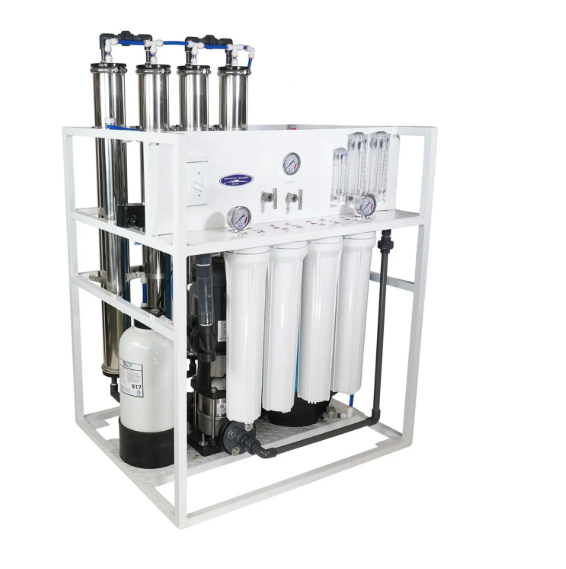

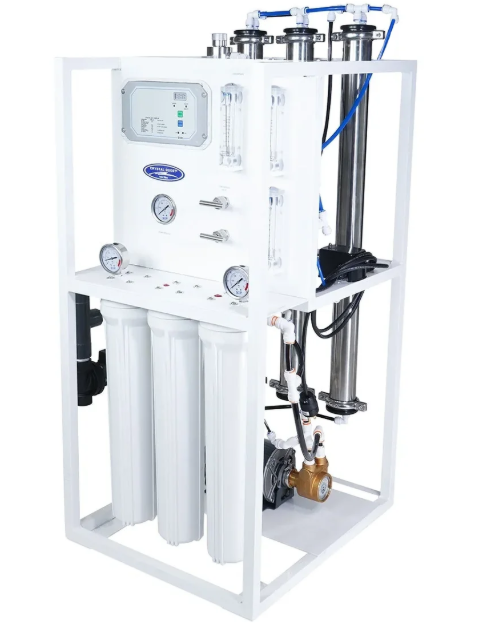

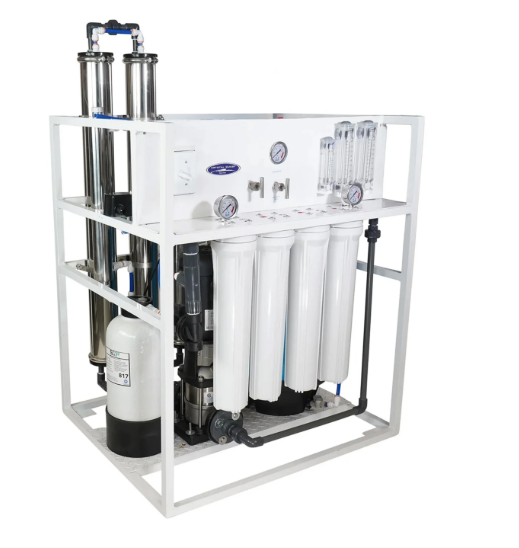

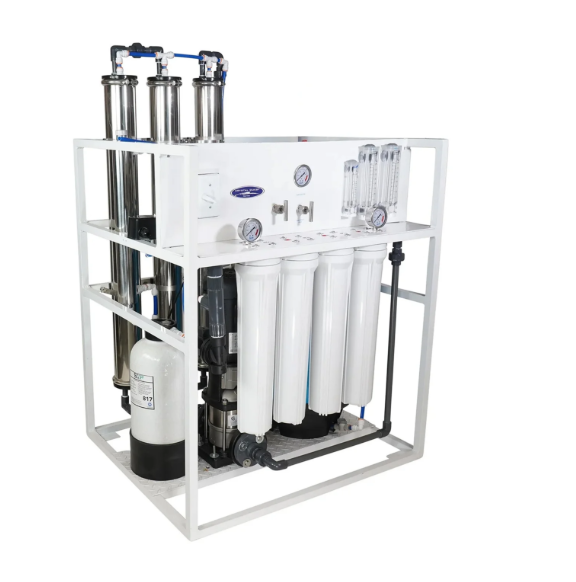

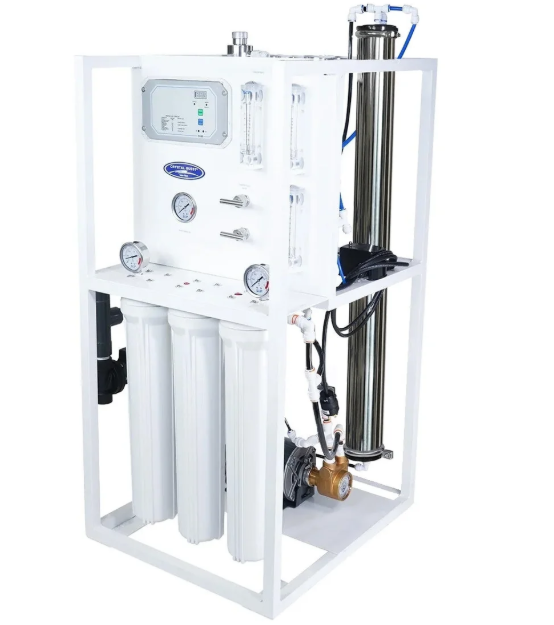

Standalone System
Suitable for direct-use applications or integration into existing pressurized systems without additional storage.

Dimensions (L x W x H)

24” x 25” x 55”

Standard Features

Durable Construction: Aluminum white powder-coated frame, corrosion-resistant and lightweight

Membrane Housing: Stainless steel housing with TFC membrane for high impurity rejection and flow performance

High-Pressure Pump Options: Brass or stainless-steel rotary vane pumps designed for continuous operation with built-in low-water protection

High-Efficiency Motor: Reliable and energy-efficient performance

Concentrate Valve (316 Stainless Steel): Controls permeate and concentrate water flow

Flow Meter: Displays permeate and concentrate flow rates

Pressure Gauges:

- 0–100 psi pre-filter pressure gauge for cartridge monitoring

- 0–300 psi pump pressure gauge (typical operation: 120–200 psi)

Low-Pressure Switch: Automatically shuts off the system to prevent pump damage

High-Pressure Tank Switch: Stops system operation at preset tank pressure levels

Feed Solenoid Valve (1”): Automatically shuts off feed water supply

Quick-Connect Fittings: Push/pull fittings with locking safety clips

Key Benefits

Compact, space-saving design

Fully pre-plumbed, wired, and assembled

Expandable and configurable system

Easy access for maintenance and servicing

Low operating and maintenance costs

Factory tested and quality assured

CE compliant

Made in the USA

1-Year limited warranty

Replacement Cartridges & Filters

To maintain optimal performance and water purity, the system requires periodic replacement of filters and membranes. Below are the compatible cartridge configurations for each system size:

500 GPD

4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge,
CQE-RC-04033

4-5/8” x 9-3/4” SMART Filter Cartridge,
CQE-RC-04027

(2) 2.5” x 21” Freshwater Reverse Osmosis Membranes,
CQE-RC-04084

750 GPD

4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge,
CQE-RC-04033

4-5/8” x 9-3/4” SMART Filter Cartridge,
CQE-RC-04027

2.5” x 40” Freshwater Reverse Osmosis Membrane,
CQE-RC-04109

1000 GPD

4-5/8” x 9-3/4” Pleated Cellulose Sediment Cartridge,
CQE-RC-04033

4-5/8” x 9-3/4” SMART Filter Cartridge,
CQE-RC-04027

(2) 2.5” x 21” Freshwater Reverse Osmosis Membranes,
CQE-RC-04084

Note: The 750 GPD system follows the same configuration as other mid-flow systems within the 500–2500 GPD range. Refer to the schematic below for system layout.

Important: This is a custom-configured water filtration system. Due to manufacturer restrictions, returns are only accepted on unused items in original packaging. Installed or used systems are not eligible for return. Please confirm compatibility with your application before purchase.
