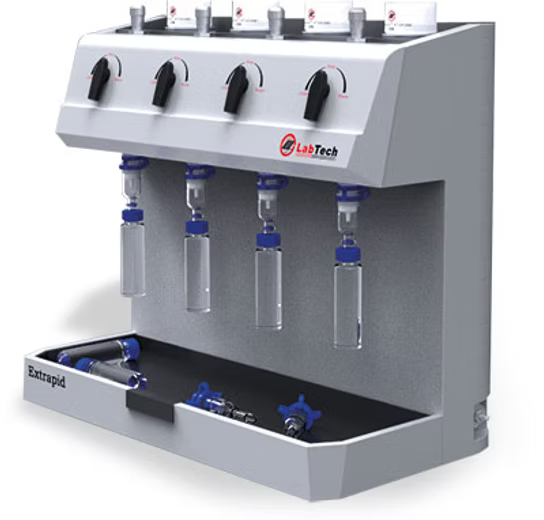

LabTech Extrapid Manual Cartridge-Disk SPE System with VP50 Vacuum Pump

Overview

The LabTech Extrapid Manual Cartridge-Disk SPE System with VP50 Vacuum Pump is a flexible solid-phase extraction (SPE) system designed for routine sample preparation and the processing of large-volume samples.

Extrapid supports both SPE cartridges and extraction disks and can process up to four samples individually or simultaneously. Independent flow control and three-way valves provide convenient control over sample collection and waste discharge, helping streamline manual vacuum-based SPE workflows.

This US configuration is supplied as a complete Extrapid package with a LabTech VP50 vacuum pump, 110V/60Hz, under LabTech P/N US-EXTP-SPE.

Cartridge & Disk Compatibility

The Extrapid platform accommodates:

• 1 mL, 3 mL and 6 mL SPE cartridges
• 47 mm and 90 mm SPE disks
• Up to 4 samples, processed individually or simultaneously

This allows a single SPE platform to support both cartridge- and disk-based extraction workflows.

Flow Control & Operation

Extrapid provides an adjustable sample flow range of 1–45 mL/min, allowing flow to be controlled according to the extraction method and sample requirements.

The system incorporates three-way valves for sample collection and waste discharge together with individual flow control. Its design eliminates the need to repeatedly switch the vacuum pump on and off during normal processing and helps simplify collection and waste handling during multi-step SPE procedures.

Key Features

Manual cartridge-and-disk solid-phase extraction system

Processes up to 4 samples individually or simultaneously

Compatible with 1, 3 and 6 mL SPE cartridges

Compatible with 47 and 90 mm SPE disks

Adjustable sample flow of 1–45 mL/min

Individual sample flow control

Three-way valves for sample collection and waste discharge

Designed to operate without repeatedly switching the vacuum pump on and off

Solvent-contacting components constructed from PTFE or stainless steel

Suitable for routine and large-volume SPE sample preparation

Supplied with LabTech VP50 Vacuum Pump in the US-MP configuration

Included Configuration

The Extrapid standard configuration documented by LabTech includes the main unit, collection bottles, clamp ring, waste liquid bottle and vacuum pump. For the LA LabVault US configuration, the vacuum source is specifically identified as the LabTech VP50 Vacuum Pump.

• LabTech Extrapid Manual Cartridge-Disk SPE System
• Collection bottles
• Clamp ring
• Waste liquid bottle
• LabTech VP50 Vacuum Pump
• 110V / 60Hz

US configuration based on LabTech P/N US-EXTP-SPE. Exact supplied components are subject to the manufacturer's current configuration.

Applications

Extrapid is particularly suited to environmental analysis and large-volume sample preparation, where controlled vacuum-based solid-phase extraction is required. The cartridge-and-disk design also provides flexibility for laboratories using multiple SPE formats within their sample-preparation workflows.
