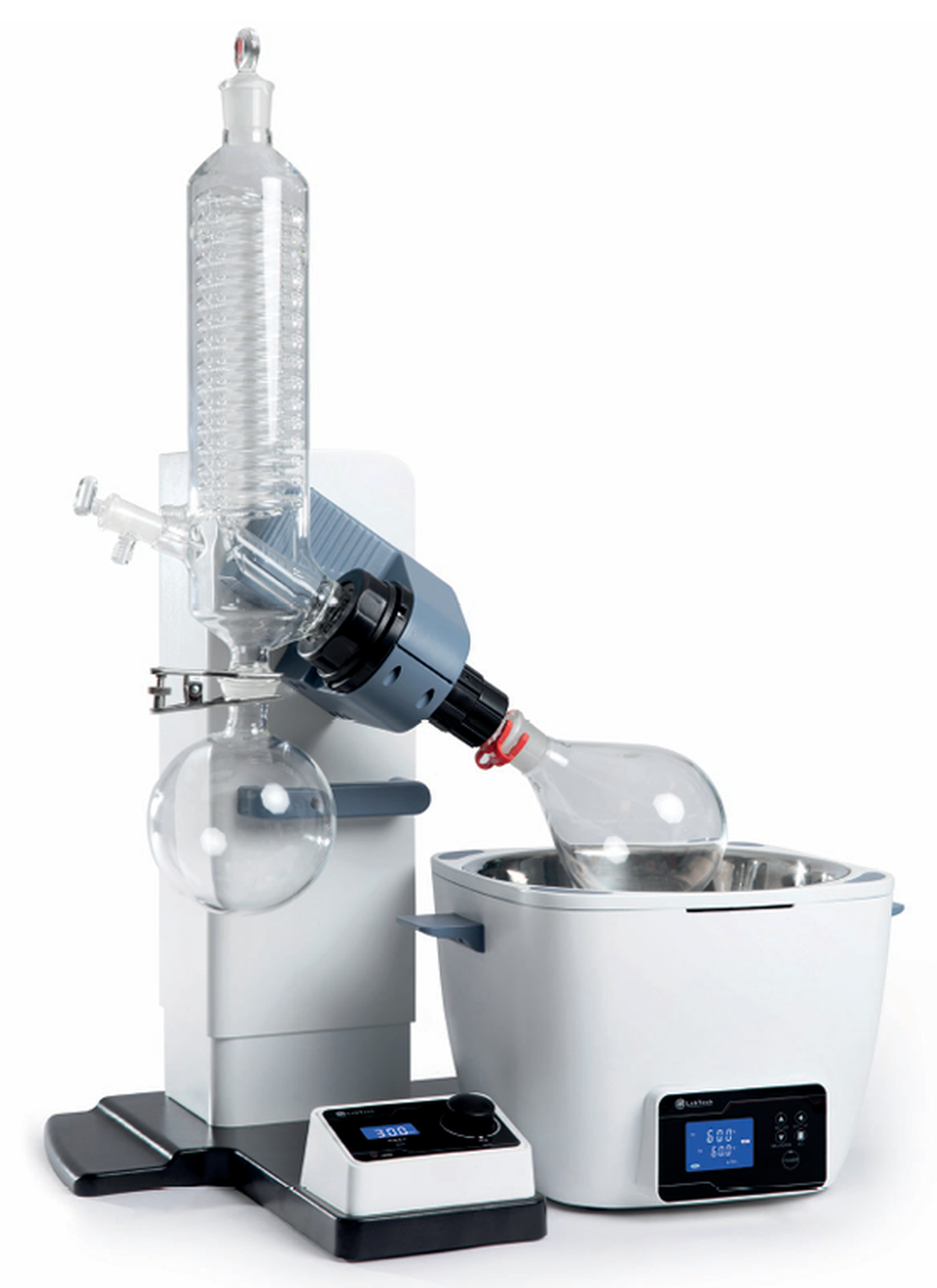

LabTech EV400VAC Rotary Evaporator

EV400VAC Overview

The LabTech EV400VAC Rotary Evaporator is a high-precision evaporation system featuring integrated vacuum control for advanced distillation and solvent recovery applications.

Designed for laboratories requiring consistent vacuum regulation and automated process optimisation, the EV400VAC enables improved reproducibility, reduced solvent loss, and enhanced efficiency when working with heat-sensitive materials.

The system combines touchscreen control, motorized lift functionality, and intelligent vacuum management in a single streamlined unit — ideal for research, pharmaceutical development, and analytical laboratories.

Key Features

Integrated vacuum controller for precise pressure regulation

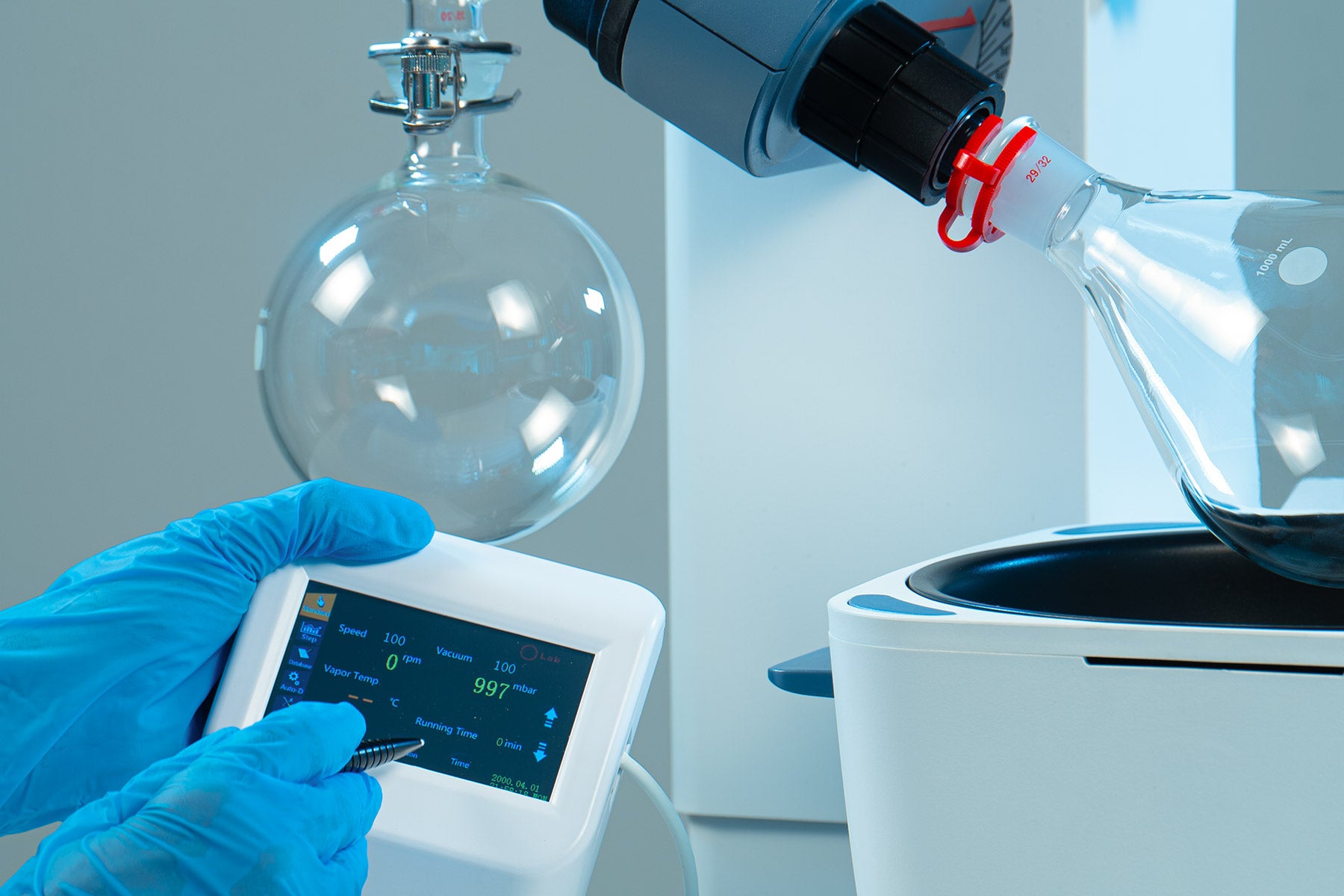

Touchscreen interface with real-time monitoring

Automated lift safety function

PID-controlled heating bath

PTFE and corrosion-resistant vacuum seals

Compatible with external chillers for optimized condensation

Ideal for: Controlled distillation, pharmaceutical R&D, and advanced solvent recovery.

Specifications

Rotation speed: 20–300 rpm

Display: Touchscreen controller

Lift type: Motorized lift

Heating bath temperature range: Room temperature to 180 °C

Temperature accuracy: ±1 °C

Heating bath capacity: Approx. 5 L

Maximum evaporation flask: 5 L

Condenser type: Vertical or diagonal condenser depending on model

Vacuum control: Integrated vacuum controller

Glassware material: Borosilicate glass

Cooling surface: Approx. 1500 cm²

Motor type: Brushless motor

Safety features: Over-temperature protection and dry-run protection

Power supply: 115 V or 230 V depending on configuration

Model differences

EV400VAC-V: Vertical condenser
EV400VAC-L: Diagonal condenser

Important: This is a professional laboratory system intended for technical use. Please ensure compatibility with your application before purchase. If you need assistance selecting the right configuration, feel free to contact us. Returns are typically accepted on unused items only.
