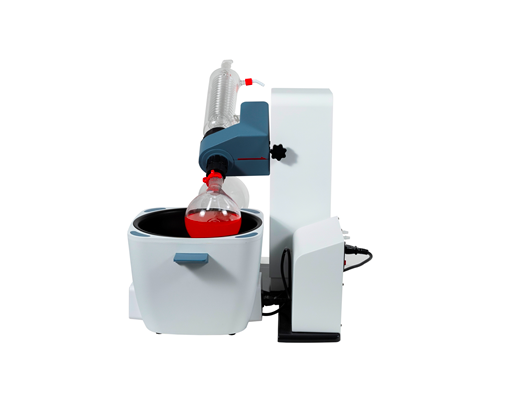

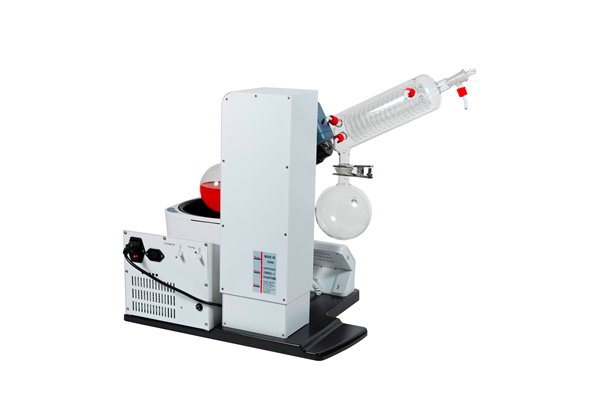

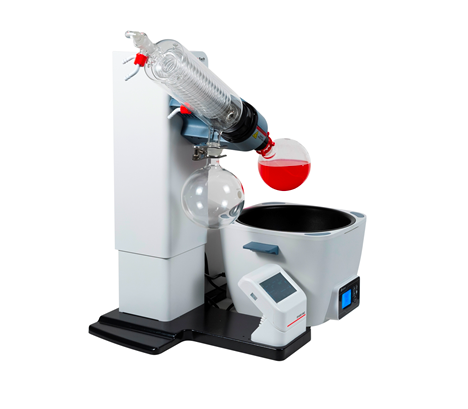

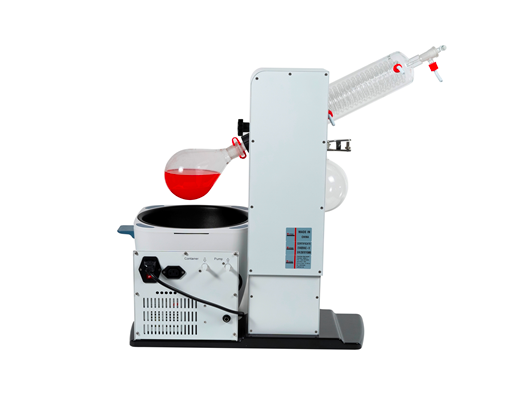

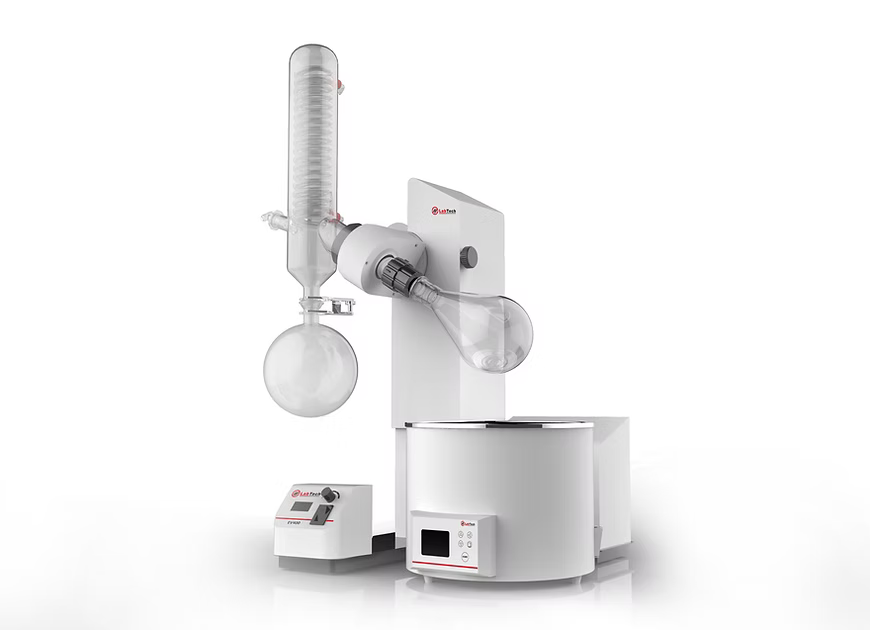

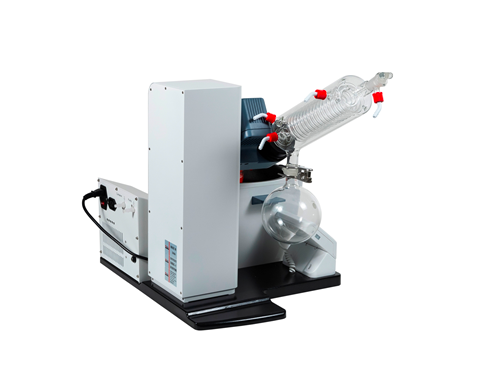

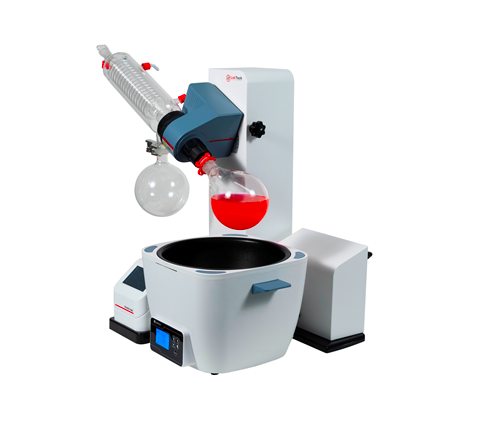

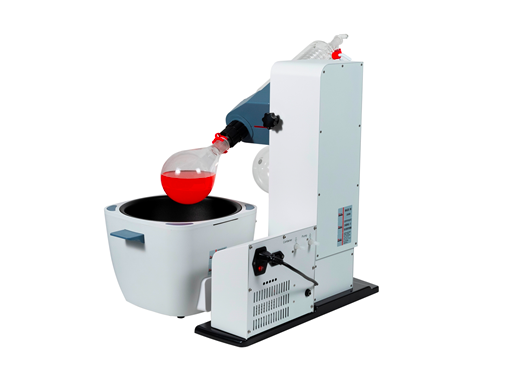

EV400 (LCD Series) Overview
The LabTech EV400 Rotary Evaporator (LCD Series) is an advanced benchtop evaporation system designed for laboratories requiring enhanced control, higher performance, and improved user interaction.
Featuring a full-color LCD display, precise PID temperature control, and adjustable rotation speeds, the EV400 series provides dependable solvent recovery and concentration across chemical, pharmaceutical, food, and environmental applications.
With modular compatibility for vacuum pumps and chillers, the EV400 offers flexible configuration to suit both routine and demanding laboratory workflows.
Key Features
Full-color LCD display for intuitive parameter monitoring
Adjustable rotation speed for optimized evaporation efficiency
Digital heating bath (water or oil compatible)
Motorized lift with smooth height adjustment
PTFE vacuum seals for chemical resistance
Compatible with vertical or diagonal condenser options
Ideal for: R&D laboratories, quality control, and solvent recovery processes.
Specifications
Rotation speed: 20–300 rpm
Display: LCD digital controller
Lift type: Motorized lift
Heating bath temperature range: Room temperature to 180 °C
Temperature accuracy: ±1 °C
Heating bath capacity: Approx. 5 L
Maximum evaporation flask: 5 L
Condenser type: Vertical or diagonal condenser depending on model
Glassware material: Borosilicate glass
Cooling surface: Approx. 1500 cm²
Motor type: Brushless motor
Safety features: Over-temperature protection and dry-run protection
Power supply: 115 V or 230 V depending on configuration
Model differences

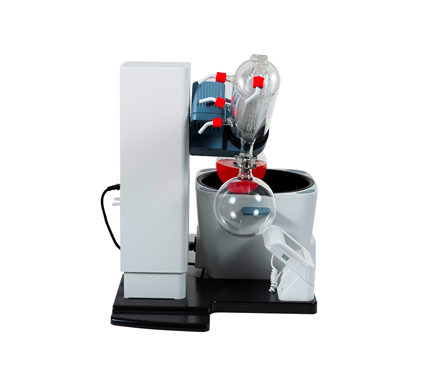

EV400-V: Vertical condenser
EV400-L: Diagonal condenser
Important: This is a professional laboratory system intended for technical use. Please ensure compatibility with your application before purchase. If you need assistance selecting the right configuration, feel free to contact us. Returns are typically accepted on unused items only.
