Overview

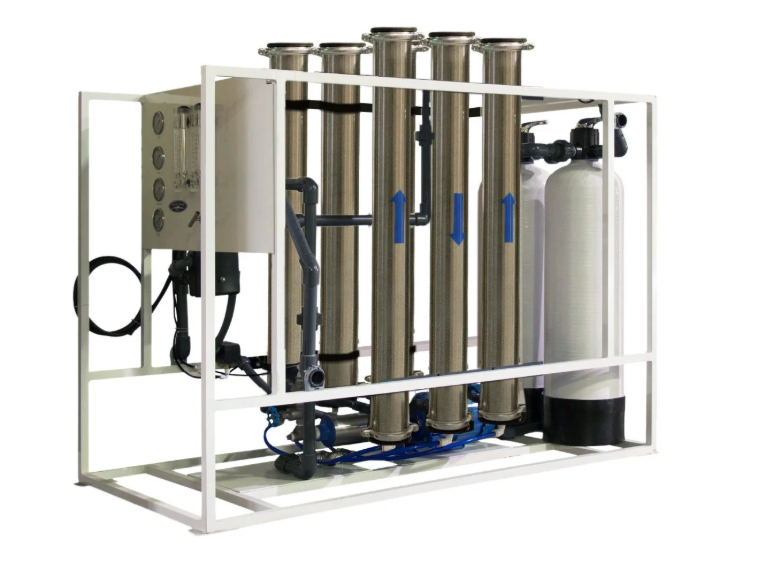

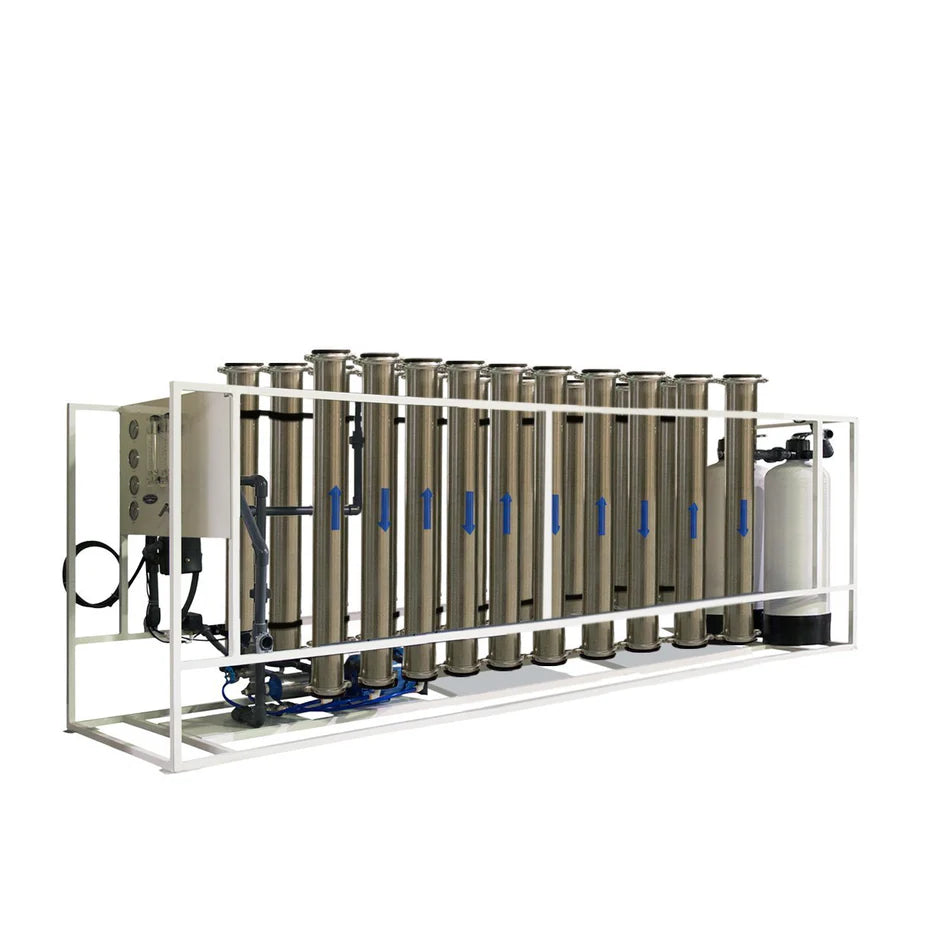

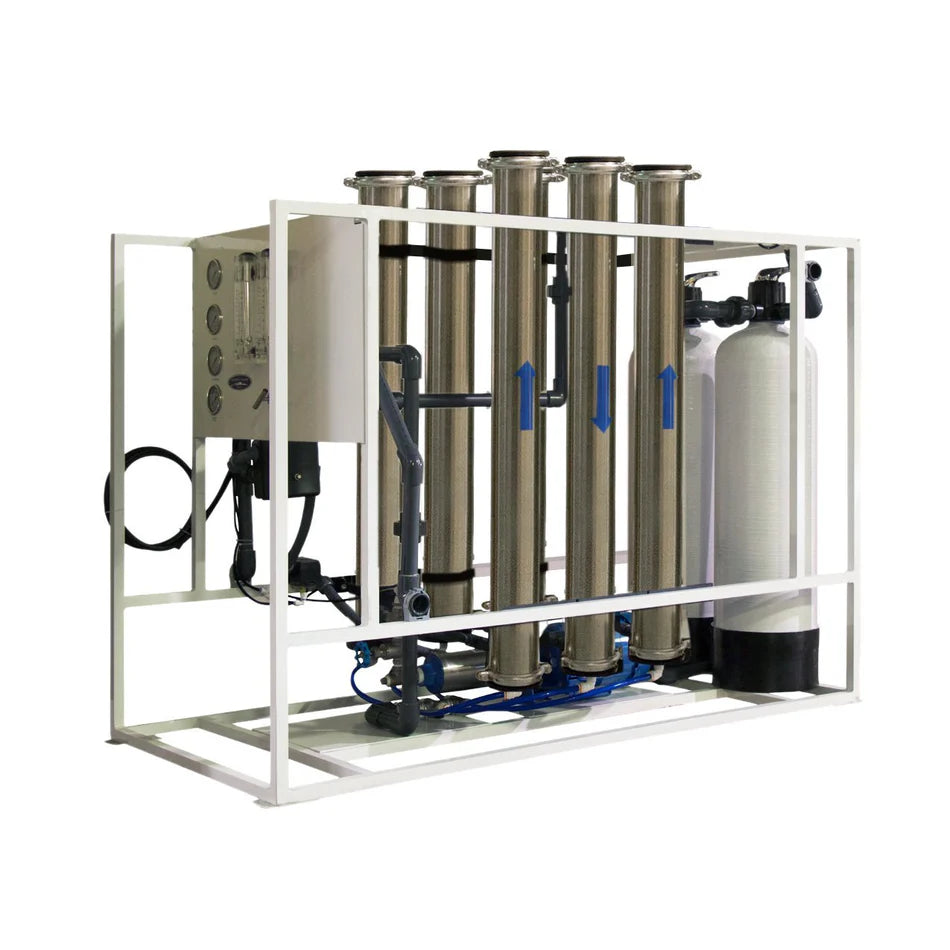

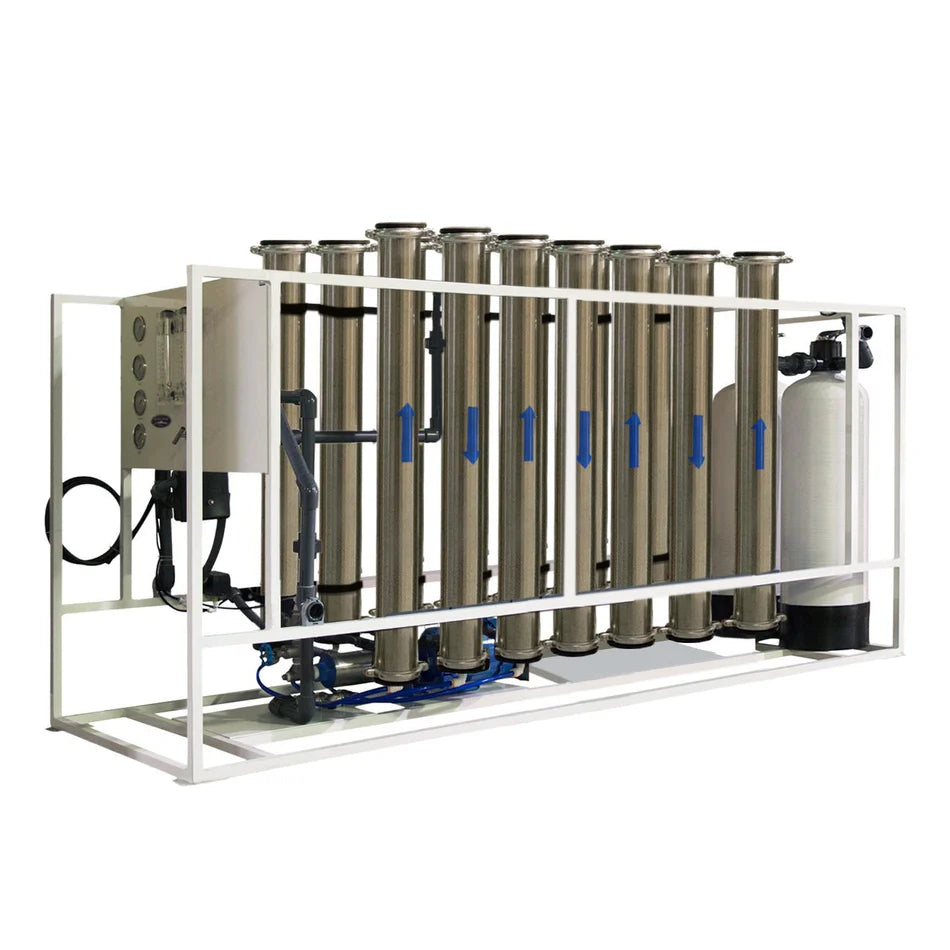

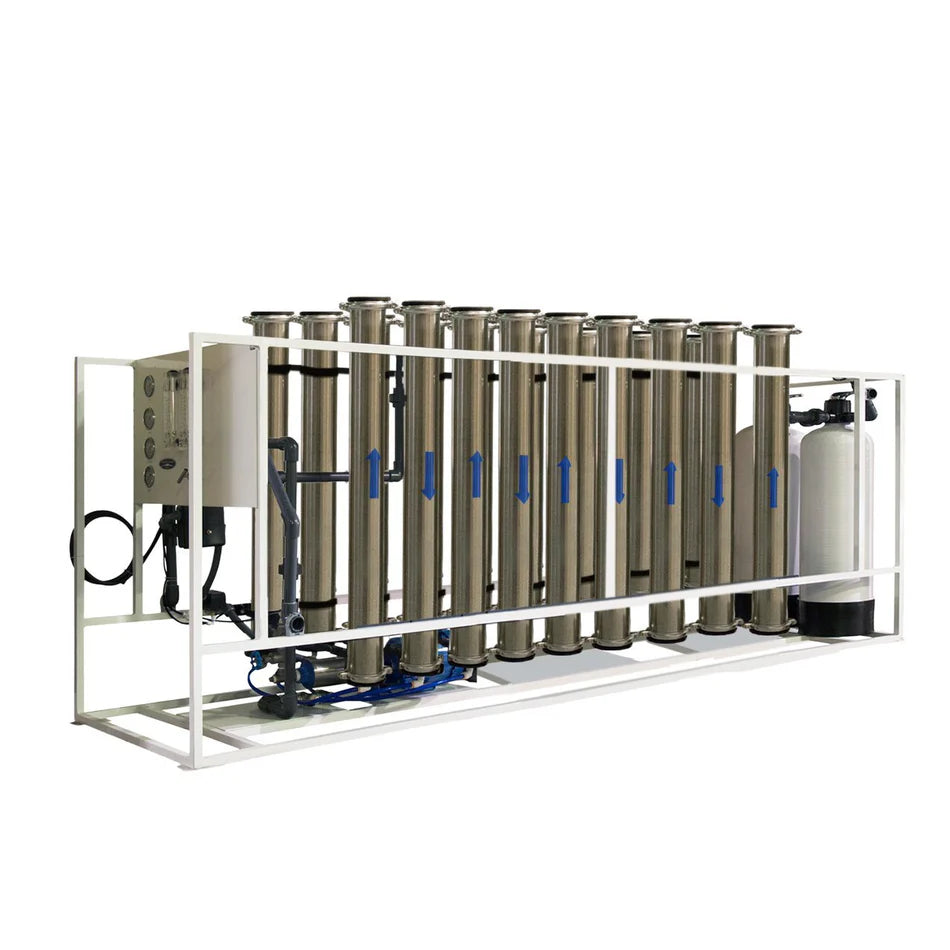

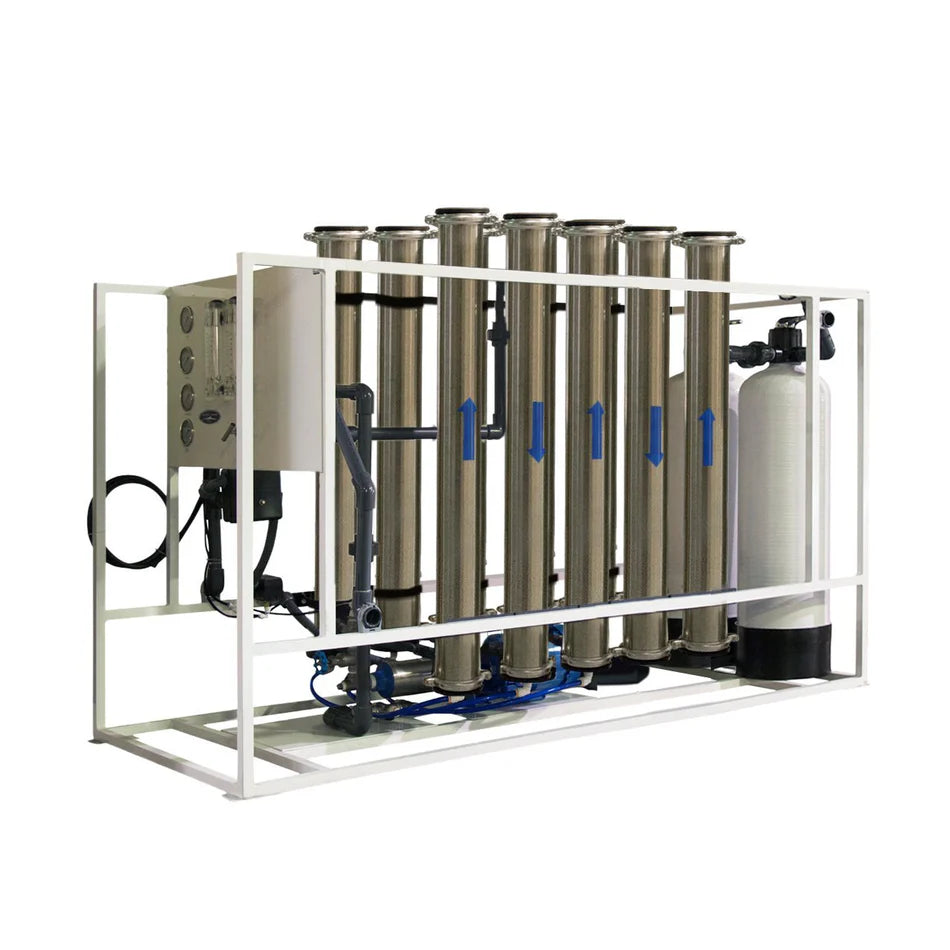

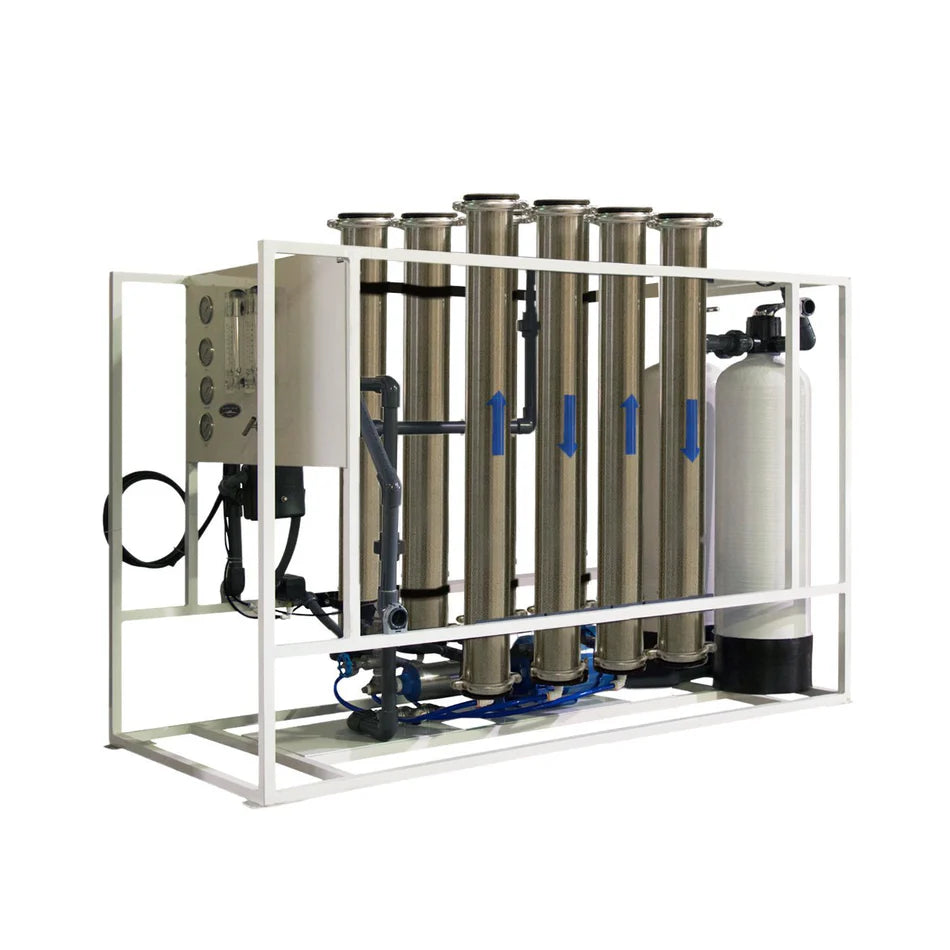

The Crystal Quest High-Flow Reverse Osmosis Systems (10,000–50,000 GPD) are engineered to deliver ultra-high purity water for demanding applications, including hospitals, pharmaceutical manufacturing, biochemistry laboratories, and industrial healthcare environments.

Designed for continuous commercial and industrial water purification applications, these systems provide scalable high-capacity performance while remaining serviceable and configurable for demanding environments.

Control Panel & Connectivity Options

High-Flow Reverse Osmosis Systems are supplied with the Crystal Quest C-150 Microprocessor Controller as standard, providing reliable day-to-day system operation, monitoring, and automatic process control.

Customers may upgrade to the Crystal Quest C-200 Microprocessor Controller, which offers enhanced automation, monitoring, fault protection, and expanded operational functionality for demanding commercial and industrial applications.

Both controller options are available with optional Ethernet connectivity, enabling remote monitoring, network integration, and facility management capabilities.

Available Controller Configurations

• Standard C-150 Microprocessor Controller
• Standard C-150 Microprocessor Controller + Ethernet
• C-200 Microprocessor Controller
• C-200 Microprocessor Controller + Ethernet

Recommended Storage Configuration

Due to the high production capacity of these systems, atmospheric storage tanks with pump systems are recommended to ensure proper operation and consistent water delivery.

Atmospheric Storage Tank Systems

Atmospheric tanks store purified water at ambient pressure and utilise a dedicated delivery pump to supply water when needed.

Recommended configurations:

220 Gallon Tank → suitable for mid-range high-flow systems

Good for:

• Moderate-demand installations
• Intermittent usage
• Space-conscious setups
• Lower-end high-flow systems

500 Gallon Tank → recommended for continuous or high-demand applications

Better for:

• Continuous operation
• Larger facilities
• High-demand applications
• Multi-user environments
• Larger-capacity high-flow systems

Key advantages

• High-capacity storage
• Stable and consistent water supply
• Designed for continuous operation

Important

Atmospheric storage tank systems include a dedicated delivery pump for consistent water distribution.

Bladder (pressure) tanks are not suitable for high-flow systems of this capacity.

Standard Features

Thin Film Composite (TFC) membranes for high rejection performance

Stainless steel membrane housings

High-performance centrifugal pump

1.5 or 2.0 cubic foot vessels with:

• 0.5 micron zeolite (turbidity and sediment removal)
• Coconut shell granular activated carbon

Low and high-pressure shut-off switches

Automatic feed shut-off

Flow control system

Feed pressure gauges

System pressure gauges

Cleaning ports for maintenance

Permeate flowmeter

Concentrate flowmeter

Permeate TDS display

Feed TDS display

Heavy-duty coated aluminum frame

Advanced microprocessor control system (configurable depending on selected controller configuration)

Automatic Controls

• Motorized actuated feed valve
• Delayed high-pressure pump start-up
• Automatic shut-down when storage tank is full
• Low and high-pressure fault protection
• Pre-treatment lock-out protection
• Automatic feed water flush at shut-down
• High product TDS alarm and shutdown

Key Benefits

• Designed for large-scale, high-demand applications
• Compact and space-efficient for its capacity
• Fully pre-plumbed, wired, and assembled
• Expandable and configurable system design
• Easy access for maintenance and servicing
• Low operating and maintenance costs
• Factory tested and quality assured
• CE compliant

• 1-Year limited warranty

Replacement Cartridges & Filters

To maintain optimal performance and water purity, High-Flow Reverse Osmosis Systems require periodic replacement of pre-filtration cartridges, carbon media, and reverse osmosis membranes in accordance with operating conditions, feed water quality, and maintenance schedules.

Compatible replacement components may include:

• Pleated Cellulose Sediment Cartridges
• SMART Plus Filter Cartridges
• SMART Ultra Filter Cartridges
• SMART Ultimate Filter Cartridges
• Thin Film Composite (TFC) Reverse Osmosis Membranes
• Replacement Carbon Filtration Media

Replacement cartridge size and quantity will vary depending on the selected system capacity and configuration.

Please refer to your system documentation or contact us for assistance in selecting the correct replacement components for your High-Flow Reverse Osmosis System.

Optional Upgrades

A wide range of upgrades are available to customise the system for specific applications:

Stainless Steel Rotary Vane Pump
Improved durability and resistance to high TDS and corrosive conditions.

Concentrate Recycle Valve
Increases system efficiency by recycling wastewater into the feed stream.

Digital TDS & Conductivity Monitoring Controllers (SWP Series)
Enables monitoring of feed and permeate water quality for performance optimisation.

Chemical Pump Outlet
Integrated power supply for chemical dosing systems.

Blending Valve
Allows adjustment of permeate water quality by blending feed water.

Permeate Sample Port
Enables individual membrane performance monitoring and troubleshooting.

Voltage Options (110V / 240V, 50–60Hz)
Adaptable to installation requirements.

Replacement Controllers
Crystal Quest C-150 and C-200 Microprocessor Controllers are also available separately for existing systems requiring replacement or upgraded control functionality.

Shipping Configuration

Supplied in a single wood crate for secure transport.

Important: This is a custom-configured water filtration system. Due to manufacturer restrictions, returns are only accepted on unused items in their original packaging. Installed or used systems are not eligible for return. Please confirm compatibility with your application before purchase.
